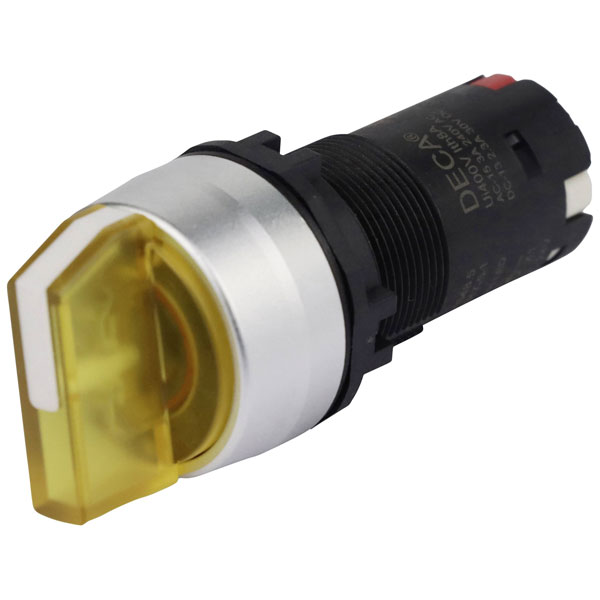

DECA CP24F-2E01Q4Y Rotary Switch 24V 8A 2 Positions IP66

The DECA CP24F-2E01Q4Y rotary switch is designed for 24 V DC/AC applications, supporting up to 8 A with two switch positions. It features IP66 protection, making it ideal for environments where dust and water resistance are critical. Typical uses include industrial control panels and machinery operation.

Type	Rotary switch
Number of Positions	2
Index Stops	2
Current Rating (Amps)	8A
Actuator Type	Toggle
Casing/button Colour	Yellow
Dim	(L x W x H) 29 x 20.5 x 68.6 mm
Front panel thickness	0.8-12mm
Height	68.6mm
IP Rating	IP66
Length	29mm
Lighting Type	incl. lighting
Plastic free packaging	Plastic-free packaging
Recess Diameter	22.3mm
Switch postions	2
Switch/button features	illuminable
Switching Voltage	24V DC/AC
Width	20.5mm
