Deca 1188449 Screw Terminal 3.30mm² Pins:3 Green 1piece

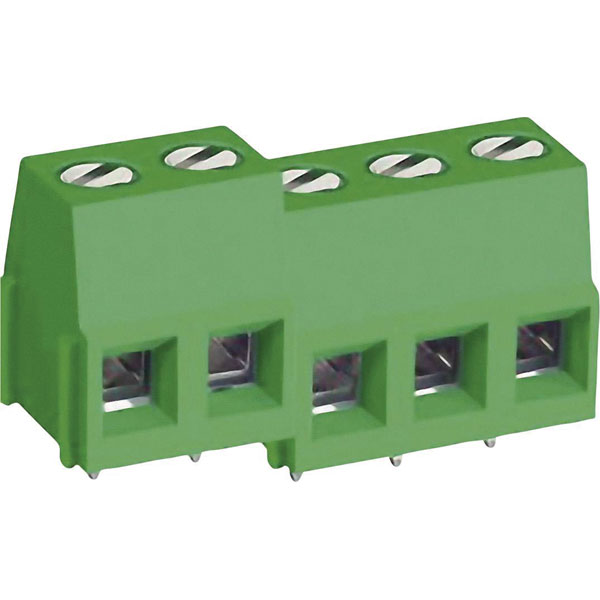

Image Representative of Range

Deca 1188449 Screw Terminal 3.30mm² Pins:3 Green 1piece

Deca
Order Code:

08-8761

Brand: Deca MPN: 1188449 EAN-13: 2050002012189
Qty Unit Price (Ex VAT)
10+ £0.676
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
341 in stock, despatched in 4 working days

The DECA screw terminal model 1188449 is a green, 3-pin PCB connector designed for a conductor cross-section up to 3.30 mm². This reliable screw terminal block is typically utilised in electrical and electronic applications to secure wires onto printed circuit boards. Ideal for various industrial and commercial settings, it ensures firm and safe connections for electrical circuits.
Pitch 5.08mm
No. of Ways 3
Mounting Type Through Hole
Mounting Direction Vertical
Wire Gauge (AWG) 26 to 12AWG
Wire Termination Rising Clamp
AWG (min.) 26
Colour Green
Contact Material Brass tin plated
Cross section (flexible) (max.) 3.30mm²
Cross section (flexible) (min.) 0.13mm²
Cross section (inflexible) (max.) 3.30mm²
Cross section (inflexible) (min.) 0.13mm²
CS 7.62mm
Current Rating 16A
Factory colour Green
Height 12.60mm
Length 10.20mm
Min. stripping length 4mm
Misc Attribute MB310-762M03
No. of Levels 1
Pins per row 3
Stripping length (max.) 5mm
Type Screw terminal
Voltage Rating 300V
Width 15.00mm
Wire protection Yes
