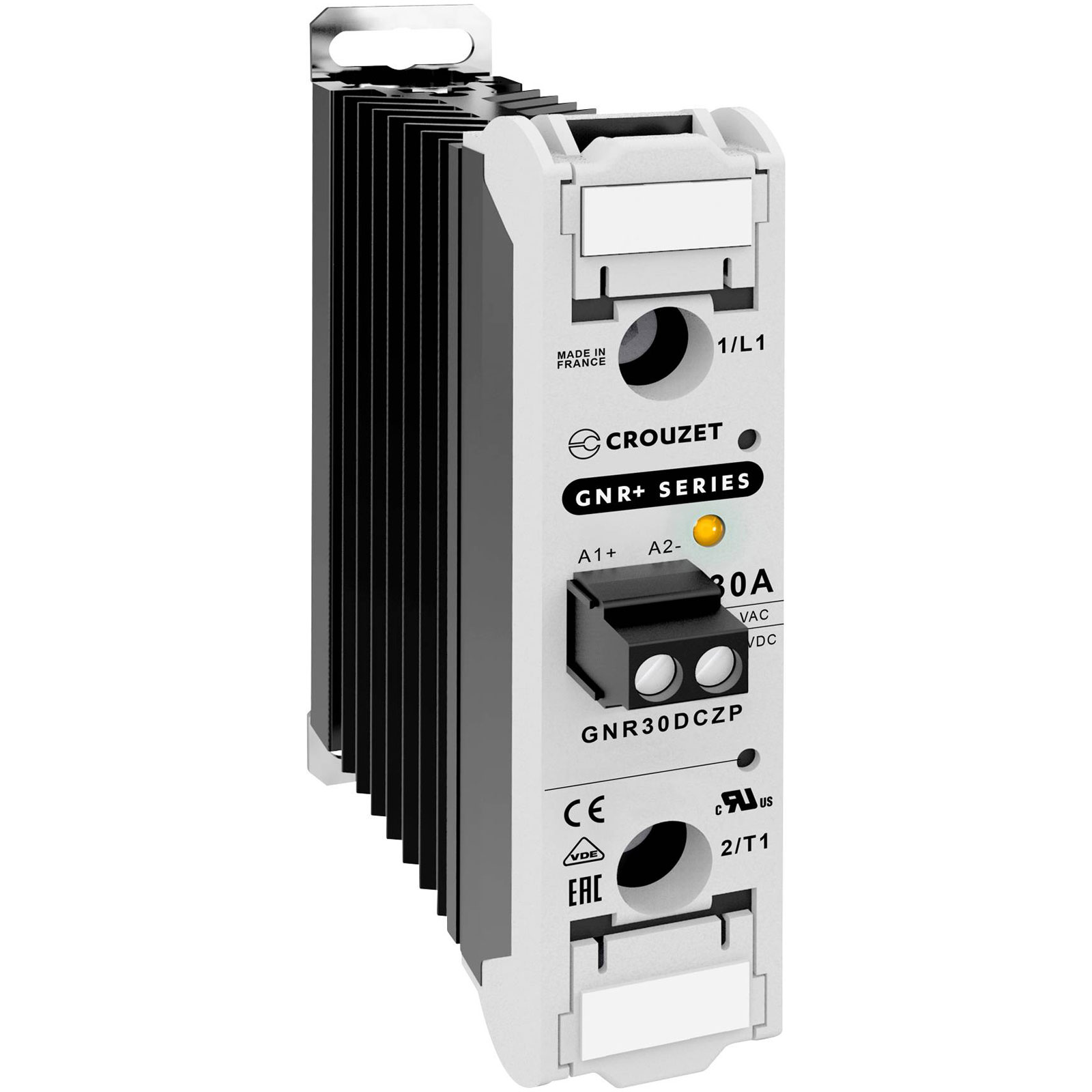

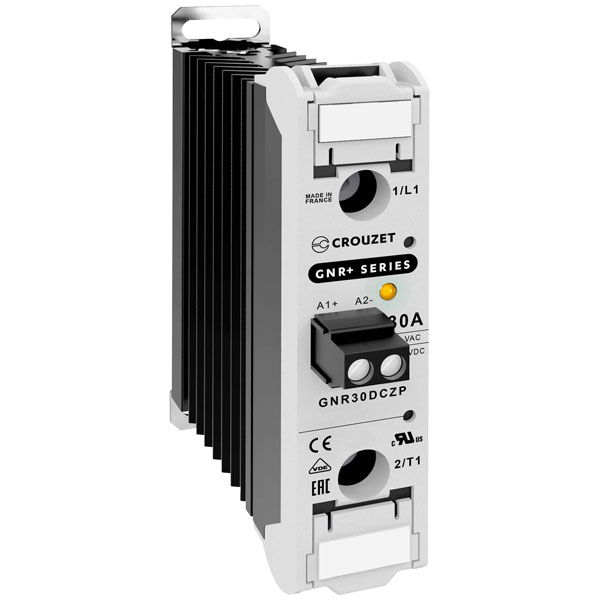

Crouzet GNR30DCZP SSR 30A Max 500VAC Ideal for Heating & Lighting

Crouzet
Extended range
Order Code:

02-4087

Brand: Crouzet MPN: GNR30DCZP
Qty Unit Price (Ex VAT)
1+ £69.64
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack order, lead time 10 days

The Crouzet GNR30DCZP is a solid-state relay designed for high-performance switching applications with a maximum switching voltage of 500 V AC. This semiconductor switch features zero crossing to minimise electrical noise and provide efficient operation. Typical applications include temperature control systems and motor switching.
Height 101mm
Length 127mm
Width 29mm
Connection Screw terminal
Control voltage (max.) 32V DC
Control voltage (min.) 4V AC
Control voltage range 4 - 32 V DC
Current load (max.) 30A
Misc Attribute GNR30DCZP
RoHS-compliant Yes
Switching type Zero crossing
Switching voltage (max.) 500V AC
Switching voltage (min.) 24V DC
Type SSR
