Cotek AEK 3000-30 SMPSU 30V 100A 3000W Compact with Wide Input Voltage

Cotek
Order Code:

08-8361

Brand: Cotek MPN: AEK 3000-30 EAN-13: 4251125201858
Qty Unit Price (Ex VAT)
1+ £812.81
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
40 available to back orderBack-order availability date - 25/12/2025

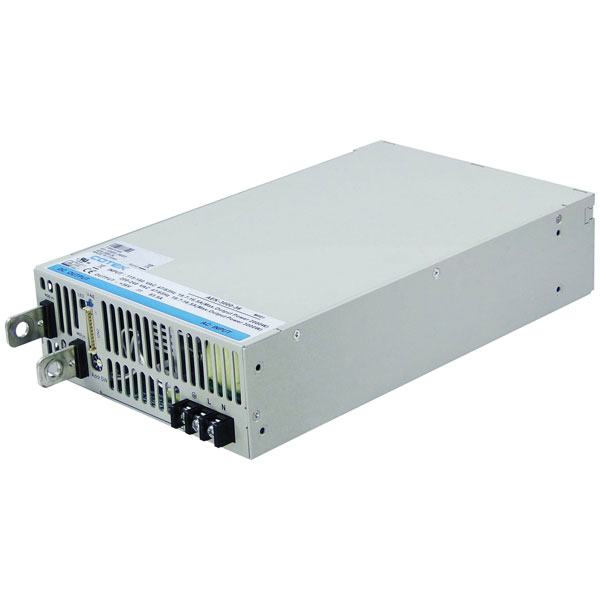

Cotek's AEK 3000-30 SMPSU is a 3,000-watt power supply unit delivering 30 V DC at 100 A. It is ideal for applications requiring high power and efficient energy conversion, such as PCB equipping and installation power supply tasks. The unit is designed for easy integration with solder lugs and supports reliable AC/DC power transformation.
Output Voltage 0V DC
Output Current 100A
Power Rating 3000W
Number of Outputs 1
Connection Screw terminal
Dimensions (L x W x H) 310 x 170 x 65 mm
Height 65mm
Length 310mm
Max. operating temperature (derating) 60°C
Max. temperature 85°C
Min. operating temperature (derating) -20°C
Min. temperature -40°C
Misc Attribute 1 Installation power supply; industrial power supply
Misc Attribute 3 closed
MTBF 60.000h
PFC Yes
Type SMPSU
Width 170mm
