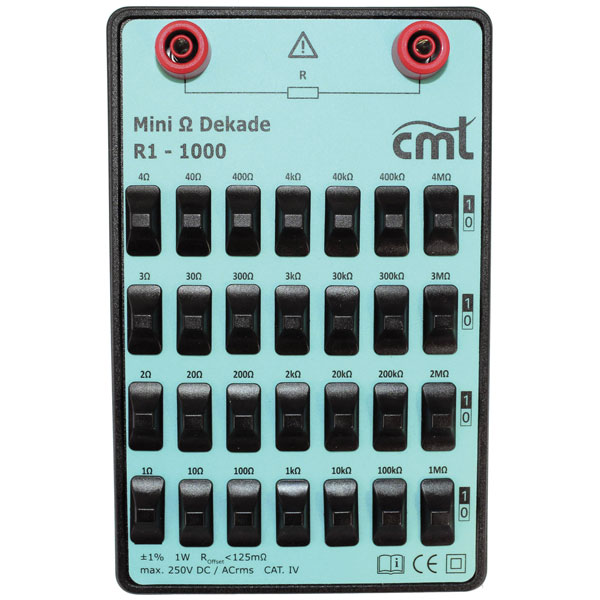

Cosinus R1-1000 Decade Box Adjustable Resistance 1% Precision 1Ω to 11.1MΩ

Cosinus
Order Code:

08-8357

Brand: Cosinus MPN: R1-1000 EAN-13: 4016138101386

Discontinued


Cosinus manufactures the R1-1000 Decade Box, a precision resistor with a 1% tolerance. This device is ideal for calibration, testing, and educational purposes due to its reliable resistance settings. Its sturdy design and accurate performance make it suitable for laboratory and industrial applications.
Decade Box Type Decade box
Accuracy - input/output voltage 1%
Adjustment Range 1 Ω - 11.11111 MΩ
Calibrated to Manufacturer's standards (no certificate)
Connection 4 mm safety sockets
Dim (L x W x H) 170 x 110 x 23 mm
Functions Resistance
Height 23mm
Length 170mm
Max. supply voltage 250V
Misc Attribute Decade resistor
Power - input/output voltage 1W
Reading category CAT IV 300 V
Steps 1 Ω
Tolerance 1%
Width 110mm
