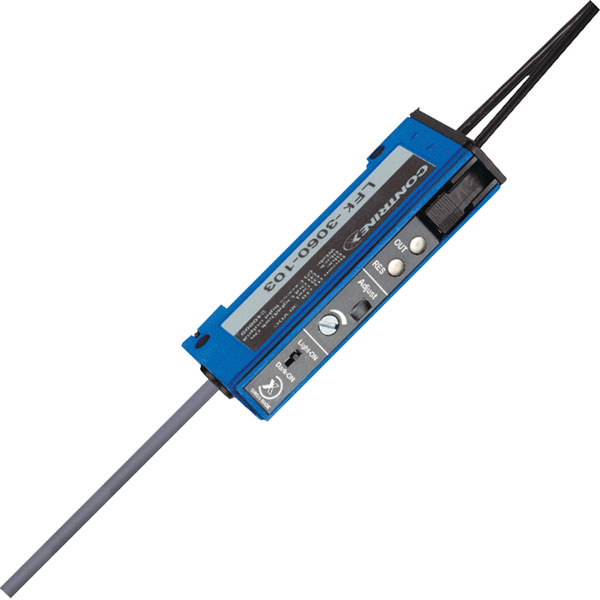

Contrinex Photoelectric Proximity Switches Fibre Optic Amplifier for DIN Rail

Contrinex Brand: Contrinex

These photoelectric proximity switches use fibre optic technology to produce sensors that are ideal for use in e.g. explosive or strong magnetic environments, where electrical signals may present a risk of explosion or may not function correctly. The sensors are designed to be DIN rail mounted and can be easily stacked for multi-sensor operations.

The maximum switching distance is 200mm and there is adjustment between 20 to 200mm via an illuminated-scale, 12-turn potentiometer. A bar graph indicaed signal strength and excess gain and there is a function to switch from light-ON to dark-ON.

  • Available with cable or connector termination
  • Easy to operate
  • Short-circuit protection
  • Polarity reversal protection
  • Power on reset
  • Robust plastic housing
Description Image Product Buy Pricing (Ex VAT) Polarity Power Termination Type IP Rating Maximum Temperature Min. temperature
Contrinex 620 000 913
Contrinex 620 000 913
Standard range
Order code: 50-0841
MPN: 620 000 913

Despatched within 4 working days - 3 in stock
1+ £76.09
Price per unit Ex VAT 		reversal protection on reset by 2m cable FO amplifier IP64 +55°C -25°C
Contrinex 620 000 915
Contrinex 620 000 915
Standard range
Order code: 50-0842
MPN: 620 000 915

Despatched within 4 working days - 8 in stock
1+ £67.94
Price per unit Ex VAT 		FO amplifier IP64 +55°C -25°C
Switching distance (mm)20 to 200mm
Adjustment typePotentiometer
Hysteresis10% typ.
Standard target100 x 100mm white
EmitterRed LED 680nm
Operating voltage10 to 36V DC
Switching frequency1500Hz max.
Switching time≤0.33ms
Modulation frequency15kHz
Ambient light max. halogen5000 lux
Ambient light max. solar10,000 lux
Ambient temperature–25°C to +55 °C
Protection typeIP64
Dimensions L x W x H (mm)60 x 31.1 x 10
