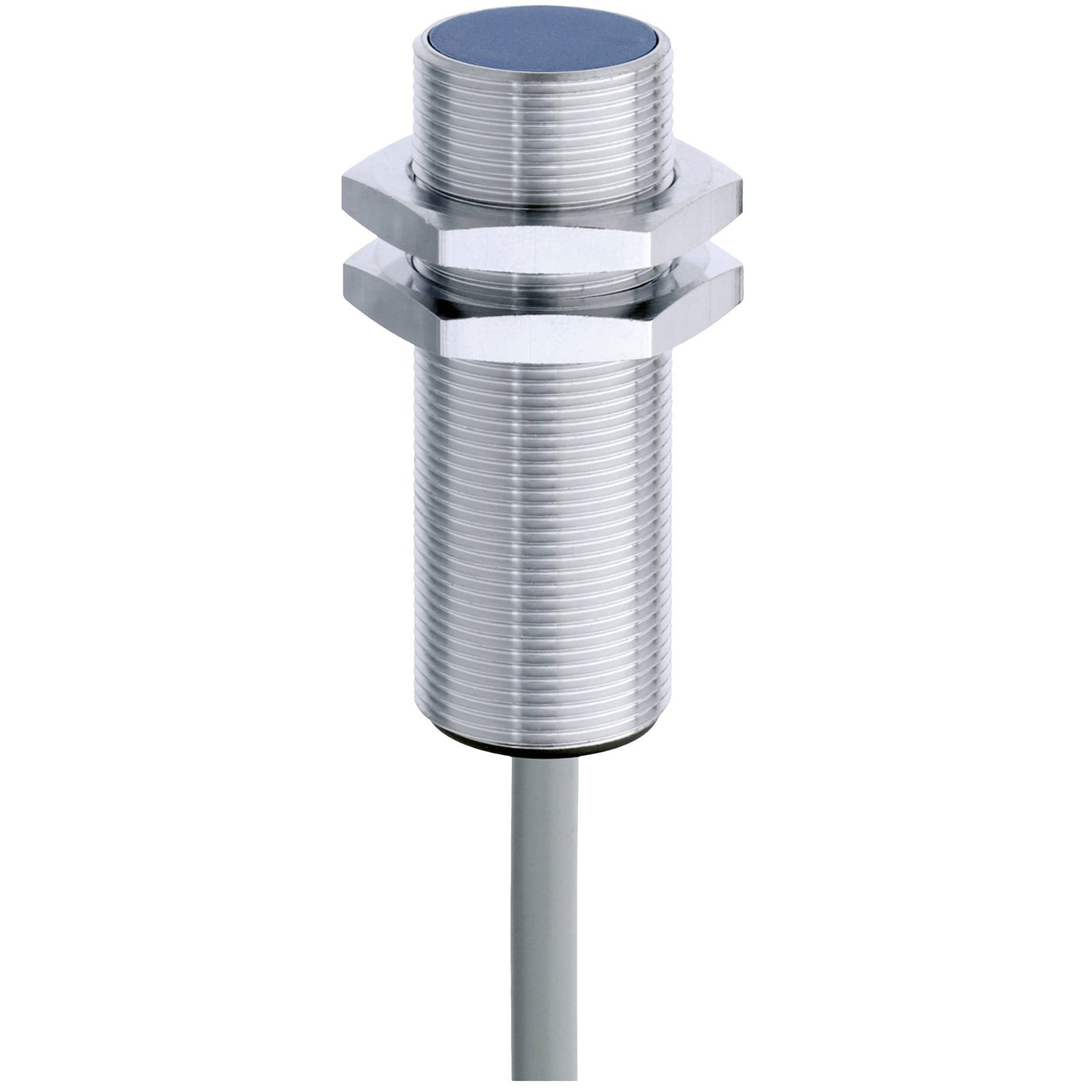

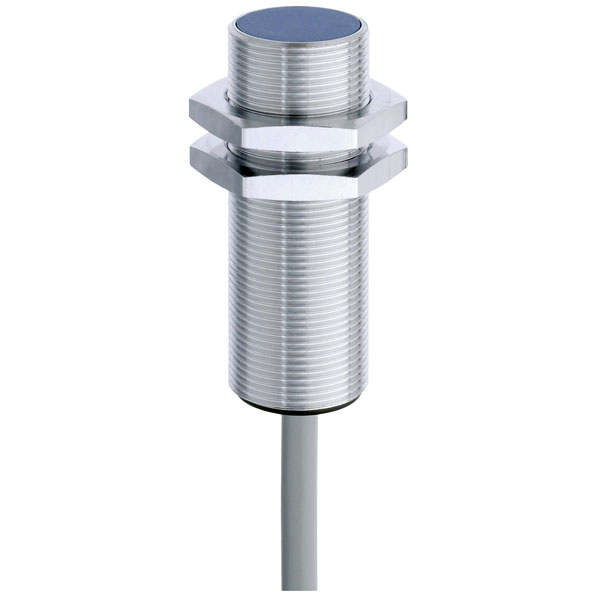

Contrinex 330-020-385 M18 Inductive Sensor Quasi-Shielded Analogue

The Contrinex DW-AD-509-M18-390 is an inductive sensor featuring quasi-shielded technology for precise proximity detection. This robust proximity switch from Contrinex is designed for high-performance analogue sensing in industrial applications. Typical uses include automation processes where accurate metal object detection is critical.

Type	Inductive sensor
Cable Length	2m
Connector	Cable, 4-core
Enclosure material	Brass
Height	51mm
Installation type	quasi-shielded
IP Rating	IP67
Max. operating voltage	30V
Max. temperature	+70°C
Min. operating voltage	15V
Min. temperature	-25°C
Misc Attribute	DW-AD-509-M18-390
Operating Voltage	15 - 30 V
Output Type	Analogue
Packaging Type	Carton
Size	M18
Switching distance (max.)	10mm
Switching Frequency	500Hz
