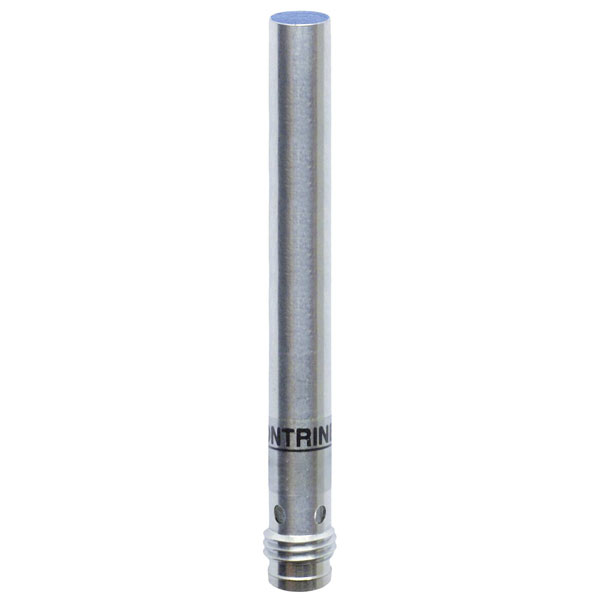

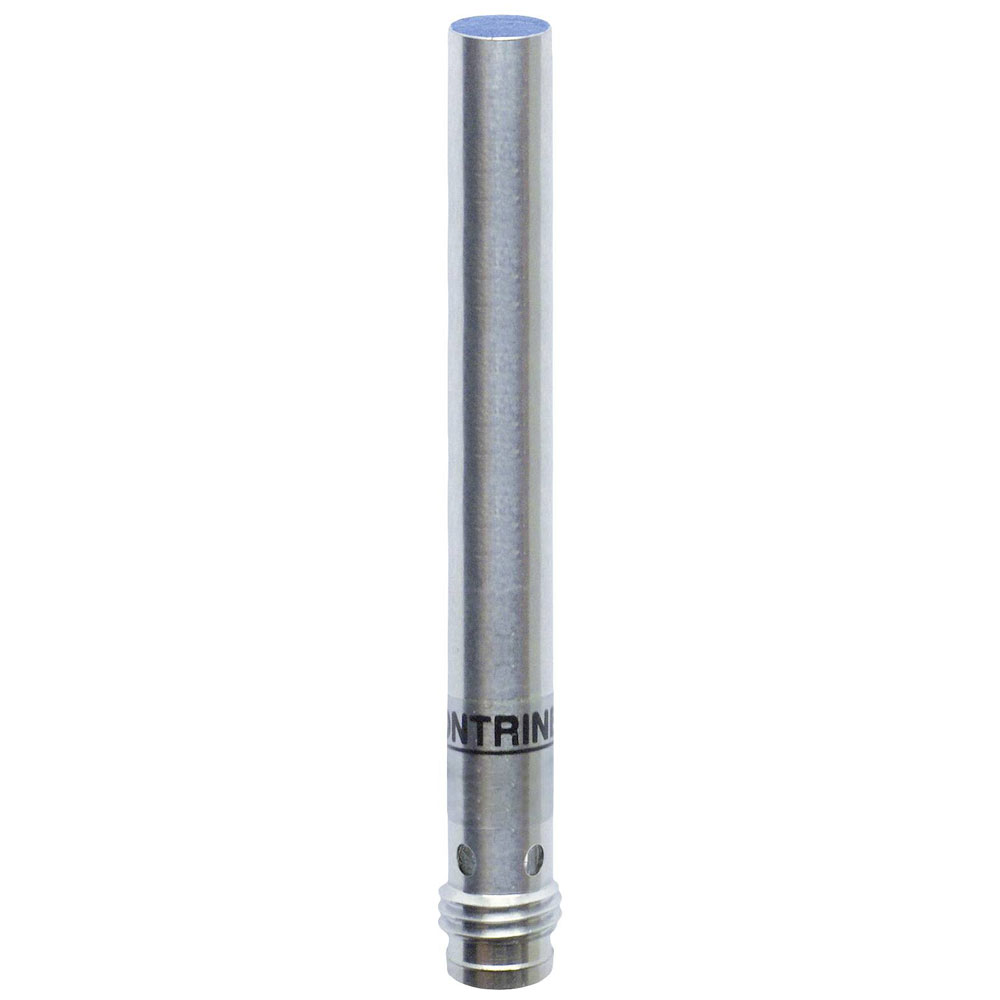

Contrinex 330-020-335 DW-AS-503-065-001 Inductive Sensor 6.5mm PNP

Contrinex manufactures the DW-AS-503-065-001, an inductive proximity sensor designed for precise detection tasks. This quasi-shielded PNP sensor, with a 6.5 mm sensing range, is ideal for use in industrial automation and robotics. Typical applications include detecting the presence of metal objects in conveyor systems or machinery operations.

Type	Inductive sensor
Connector	M8 (3-pin)
Contact Type	1 maker
Enclosure material	Brass
Height	60mm
Installation type	quasi-shielded
IP Rating	IP67
Max. operating voltage	30V
Max. temperature	+70°C
Min. operating voltage	10V
Min. temperature	-25°C
Misc Attribute	DW-AS-503-065-001
Operating Voltage	10 - 30 V
Output Type	PNP
Packaging Type	Carton
Size	6.5mm
Switching distance (max.)	3mm
Switching Frequency	1000Hz
