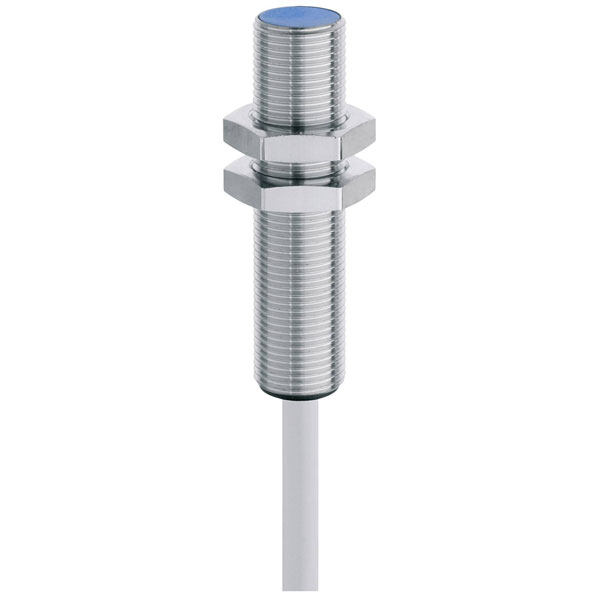

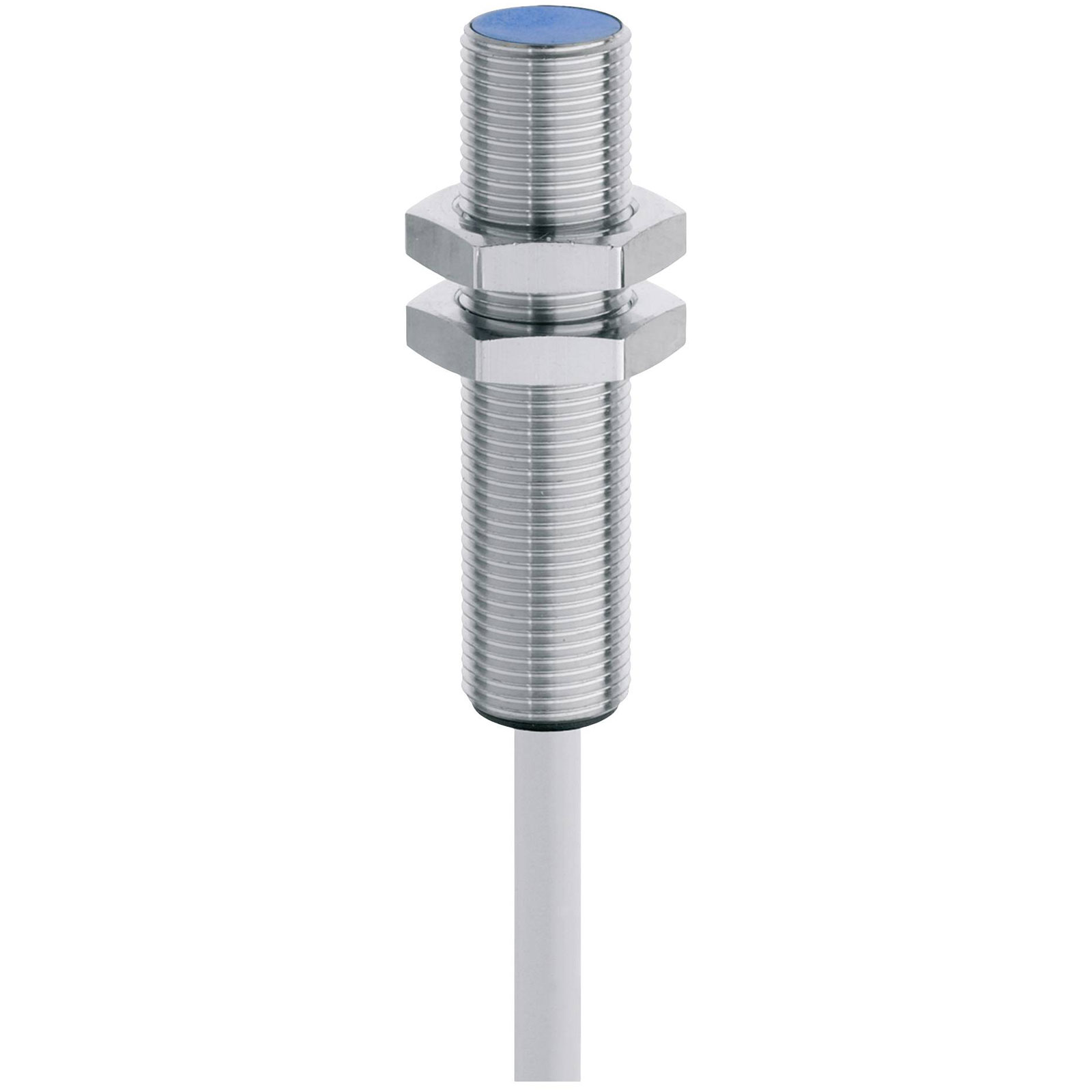

Contrinex 330-020-110 Inductive Sensor M12 Quasi-Shielded PNP

The Contrinex inductive sensor, model DW-AD-503-M12, is a reliable proximity switch designed for precise inductive proximity detection. Ideal for industrial applications, this quasi-shielded PNP sensor offers robust performance in detecting metal objects without physical contact. With its M12 housing, it is widely used for automation tasks and machinery safety in manufacturing environments.

Type	Inductive sensor
Cable Length	2m
Connector	Cable, 3-core
Contact Type	1 maker
Enclosure material	Brass
Height	50mm
Installation type	quasi-shielded
IP Rating	IP67
Max. operating voltage	30V
Max. temperature	+70°C
Min. operating voltage	10V
Min. temperature	-25°C
Misc Attribute	DW-AD-503-M12
Operating Voltage	10 - 30 V
Output Type	PNP
Packaging Type	Carton
Size	M12
Switching distance (max.)	6mm
Switching Frequency	800Hz
