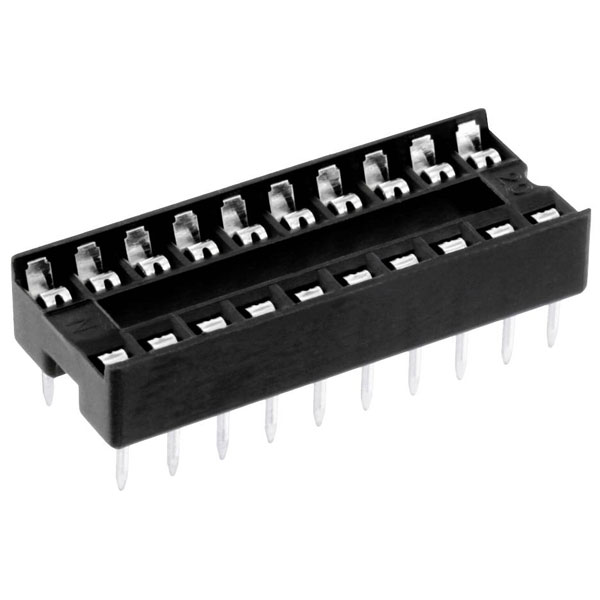

Connfly DS1009-20AT1NX-0A2 IC socket Contact spacing 2.54mm 20 pins Tube

Connfly DS1009-20AT1NX-0A2 is a precision-engineered IC socket designed to accommodate integrated circuits with a contact spacing of 2.54 mm. This component, comprising 20 pins, is delivered in tube packaging, ensuring safe handling during transport and storage. It serves as a reliable interface solution in various electronic applications, allowing for the easy installation and removal of ICs without direct soldering, thereby safeguarding the integrity of both the IC and the circuit board. Commonly utilised in prototyping, testing, and production environments, this IC socket is suitable for engineering projects that require standardised interfacing and high-density circuit integration.

Number of Positions	20
Pitch	2.54mm
Row Pitch	7.62mm
Content	1
Cross Section	2.54mm
Dimensions	(W x H) 10.16 mm x 4.8 mm
Height	4.8mm
Material	Thermoplastic
Maximum Temperature	105°C
Minimum Temperature	-20°C
Type	IC socket
Width	10.16mm
