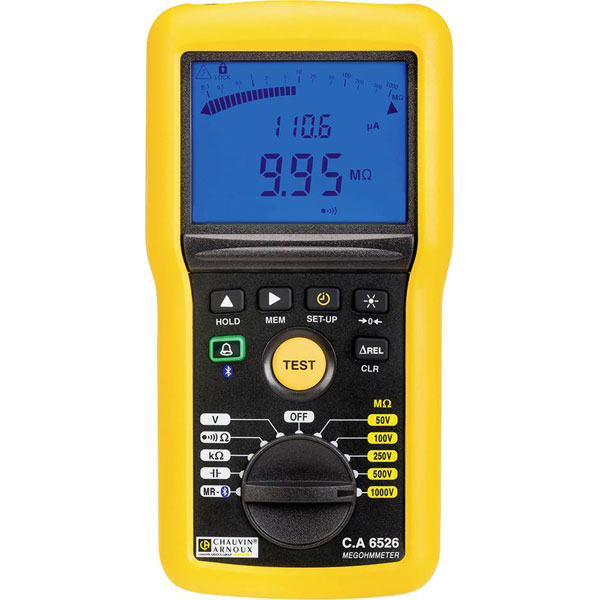

Chauvin Arnoux P01140826 C.A 6526 Insulation Tester 50-1000V 200 GΩ

The Chauvin Arnoux C.A 6526 is an insulation tester designed for resistance testing with selectable test voltages from 50 V to 1000 V, measuring up to 200 GO. It features various functions for electrical isolation and ohm testing, making it suitable for ensuring safety and reliability in electrical installations and maintenance. Typically used by electricians and technicians, this tester aids in identifying insulation faults and verifying the efficacy of electrical components.

Type	Insulation tester
Calibrated to	Manufacturer's standards (no certificate)
Continuity testing	0 - 100 Ω
Dim	(L x W x H) 60 x 211 x 108 mm
Display Type	Digital (LCD)
Frequency Range	15.3 Hz - 399.9 Hz
Height	108mm
Insulation resistance (max.)	200 GΩ
Interfaces	Bluetooth® 2.0
IP rating	IP54
Length	60mm
Max. frequency	399.9Hz
Min. frequency	15.3Hz
Reading category	CAT IV 600 V
Reading range - resistance	0 - 3999 Ω
Voltage reading range (max.)	399.9V
Voltage reading range (min.)	0.3V
Weight	850g
Width	211mm
