Celsa 70017-1268-1000 AST Current Transformer Primary 1250A 5A Compact

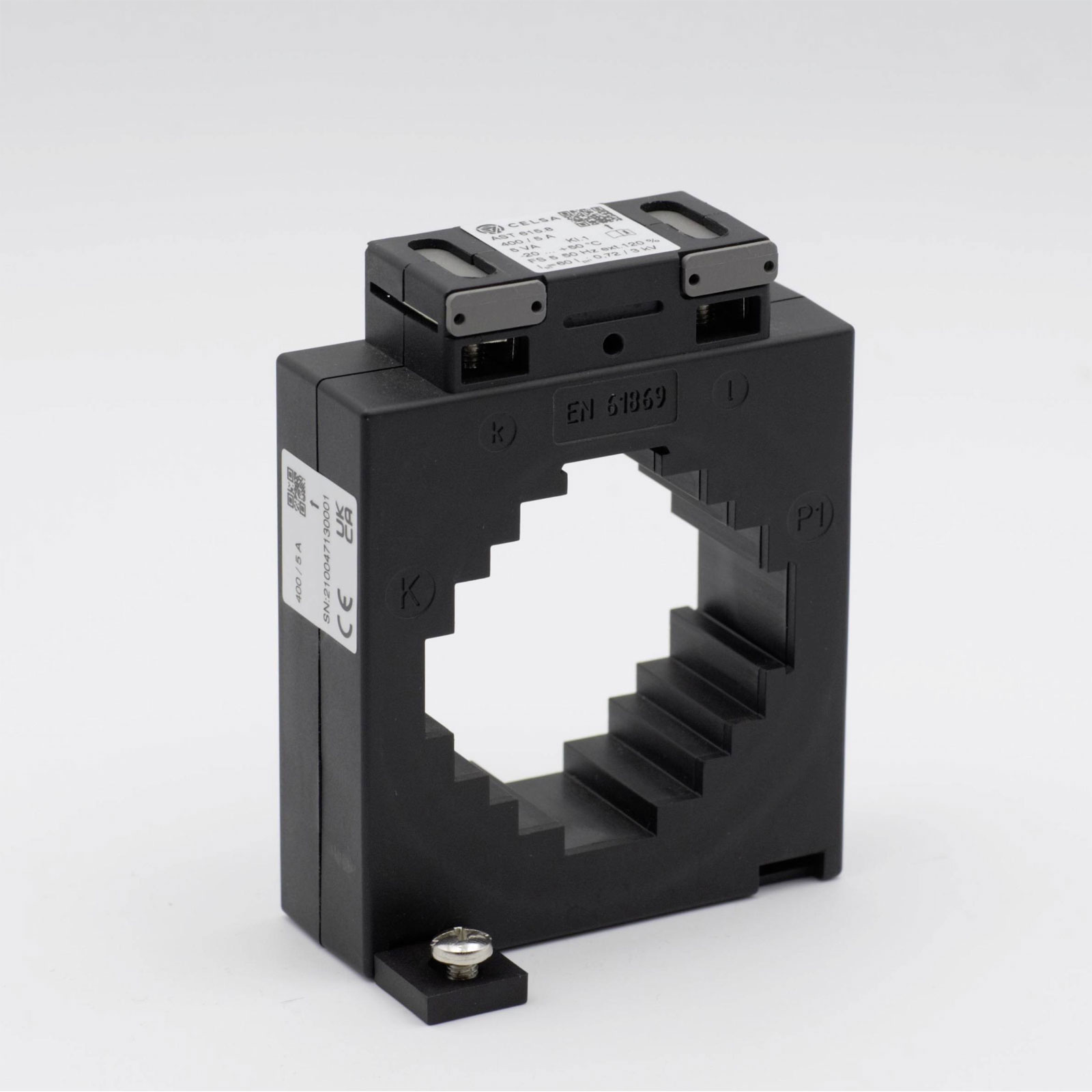

The Celsa AST 615.8 1250/5A 10VA Kl. 1 current transformer efficiently converts a primary current of 1250 A to a secondary current of 5 A. Its compact design with a 61 x 61 mm line feed-through makes it suitable for integration in various electrical systems. Typically used in power monitoring and protection applications, this attachment ensures reliable performance.

Type	Current transformer attachment
Primary Current	1250A
Accuracy Class	1
Calibrated	FALSE
Height opening	16-61mm
Line feed-through (H x W)	61 x 61 mm
Line feed-through (H)	61mm
Line feed-through (W)	61mm
Line feed-through diameter	52mm
Misc Attribute	AST 615.8 1250/5A 10VA Kl. 1
Model	Attachable current transformer
Number of primary inputs	1
Opening diameter	52mm
Overcurrent limiting factor	FS 5
Rated primary current	1250A
Rated secondary apparent power	10VA
Rated secondary current	5A
Secondary connection	Screw connection
Secondary current	5A
Snap mounting	FALSE
Width opening	16-61mm
With contact protection	TRUE
With copper rail	FALSE
