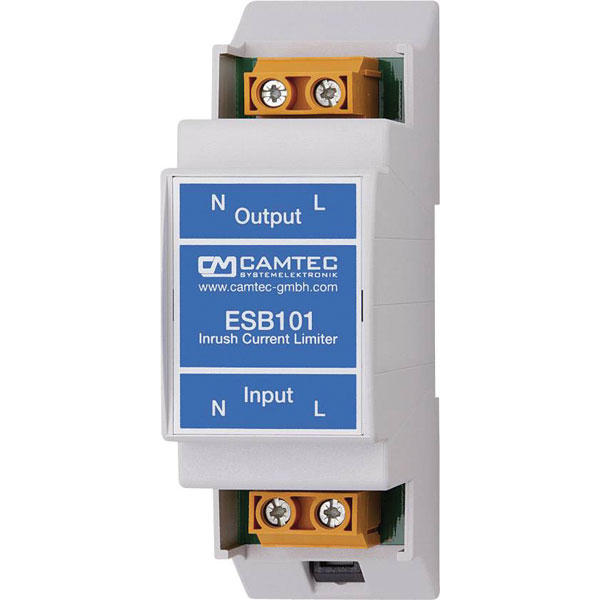

Camtec 3041081001 ESB101 Inrush Current Limiter 16A 115/230VAC 16-440Hz

The Camtec 3041081001 is a switch-on current limiter designed to reduce inrush currents across frequencies from 16 ? to 440 Hz. Manufactured by Camtec, this device is ideal for protecting electrical components by acting as a soft starter. It is typically used in applications that require controlled start-up currents to prevent damage to infrastructure.

Type	Inrush current limiter
Current Rating	16A
Voltage Rating - AC	230V AC
Connection	Spring-loaded terminals with cable protection 0.5...6 mm² 21…10 AWG according to IEC/EN 60664-1, IEC/EN 61984
Depth	62mm
Dim	(W x H x D) 36.5 x 110 x 62 mm
Height	110mm
Weight	121g
Width	36.5mm
