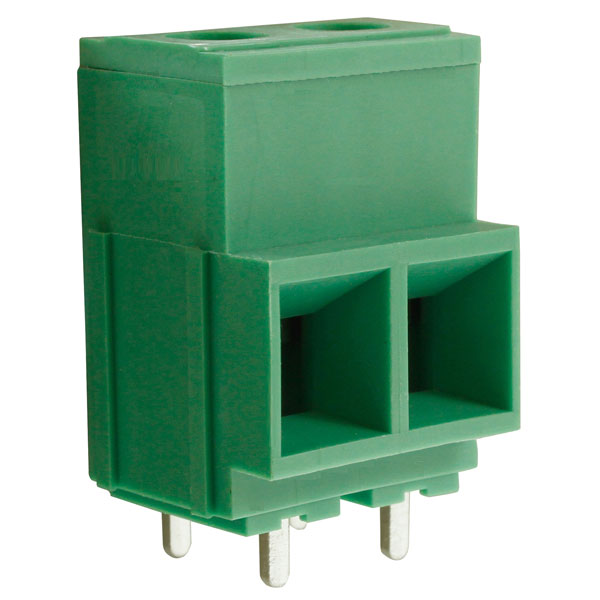

CamBlock Plus CTBP77VP/2 10.16mm V/Hi Power Pcb Terminal Block 2 Pole

Very high power 2-pole rising clamp terminal block from the CamBlock Plus range by CamdenBoss. These green blocks are made from flame retardant polyamide.

• 2 and 3-pole versions have a double interlocking mechanism for increased strength
• Moulded in UL94-V0 flame-retardant PA66
• Captive screws
• Professional rising clamp terminals
• Wire capacity 10mm² (20 to 6AWG)
• Pitch 10.16mm
• Current rating 52A UL, 57A VDE
• Length 20.3mm
• Width 18.7mm
• Height 29.6mm
• Manufacturer's part CTPB77VP/2

Rapid is an official distributor of CamdenBoss products. The products listed here are those that Rapid hold in stock – but we have access to many more, including the company's complete range of terminal blocks. Click here to make an enquiry about ordering CamdenBoss terminal blocks, connectors and enclosures.

Pitch	10.16mm
Mounting Type	Through hole
Mounting Direction	Vertical
Wire Gauge (AWG)	22 to 6AWG
Wire Termination	Rising clamp
Current Rating	52A
Colour	Green
Number of Ways	2
Wire Gauge	10mm²
