CamBlock Plus CTBP04VZ/5 9.5mm High Power Pcb Terminal Block 5 Pole

CamdenBoss
Order Code:

21-3586

Brand: CamdenBoss MPN: CTBP04VZ/5

  • Quickly find another product in this range by Number of Ways:

    2 3 4 5 6
Qty Unit Price (Ex VAT)
5+ £0.275
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
214 in stock, despatched same dayContact us for additional stock

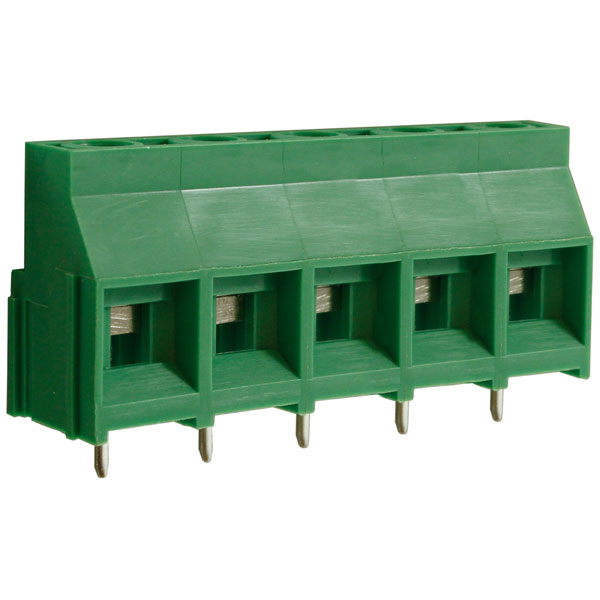

High power rising clamp terminal block with 5 poles from the CamBlock Plus range by CamdenBoss. These green blocks are made from flame retardant polyamide.
  • Moulded in UL94-V0 flame-retardant PA66
  • Guided pin alignment
  • Captive screws
  • Wire capacity 4mm² (26 to 10AWG)
  • Current rating 30A UL, 32A VDE
  • Pitch 9.5mm
  • Length 47.6mm
  • Width 12.6mm
  • Height 21mm
  • Manufacturer's part CTBP04VZ/5

Rapid is an official distributor of CamdenBoss products. The products listed here are those that Rapid hold in stock – but we have access to many more, including the company's complete range of terminal blocks. Click here to make an enquiry about ordering CamdenBoss terminal blocks, connectors and enclosures.


Pitch 9.5mm
Mounting Type Through hole
Mounting Direction Vertical
Wire Gauge (AWG) 26 to 10AWG
Wire Termination Rising clamp
Current Rating 30A
Colour Green
Number of Ways 5
Wire Gauge 4mm²
