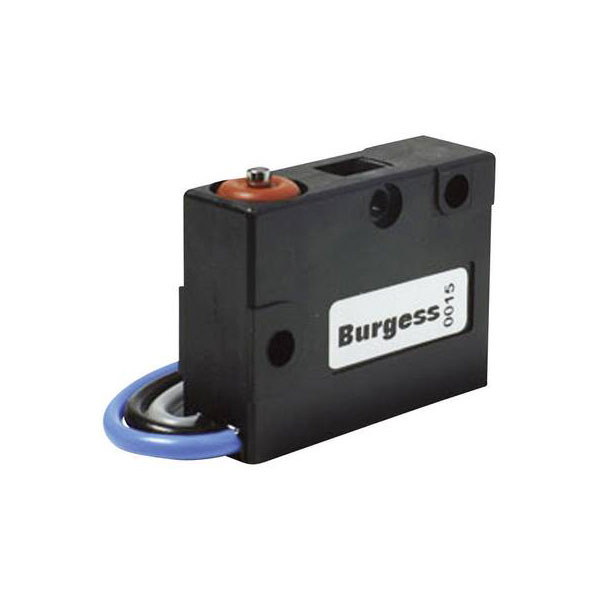

Burgess V3SY1UL Miniature Microswitch 250V AC 5A IP67 Momentary

Image Representative of Range

Burgess V3SY1UL Miniature Microswitch 250V AC 5A IP67 Momentary

Burgess
Order Code:

08-7006

Brand: Burgess MPN: V3SY1UL EAN-13: 2050000965791
Qty Unit Price (Ex VAT)
1+ £40.83
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
9 in stock, despatched in 4 working days

The Burgess V3SY1UL microswitch is a momentary switch rated for 250 V AC and 5 A with an IP67 environmental protection rating. It is ideal for applications requiring a robust switch in harsh environments, such as industrial machinery or outdoor equipment. The microswitch is compact and designed for high durability, making it suitable for precision electrical devices.
Type Microswitch
Actuating Force 1.65N
Contact Material Ag
Contact Type 1 change-over
Dim (L x W x H) 10 x 32 x 24 mm
Functions momentary
Height 24mm
IP Rating IP67
Length 10mm
Max. temperature +85°C
Min. temperature -40°C
Misc Attribute 1 1 changeover
Operation type Steel lever (straight)
Switch position 1 x On/(On)
Switching Current 5A
Switching current (max.) 5A
Switching Voltage 250V AC
Temperature Range -40 - +85°C
Width 32mm
