Burgess F4T7YCUL Microswitch 250V AC 5A On/(On) IP40 Momentary UL-CSA

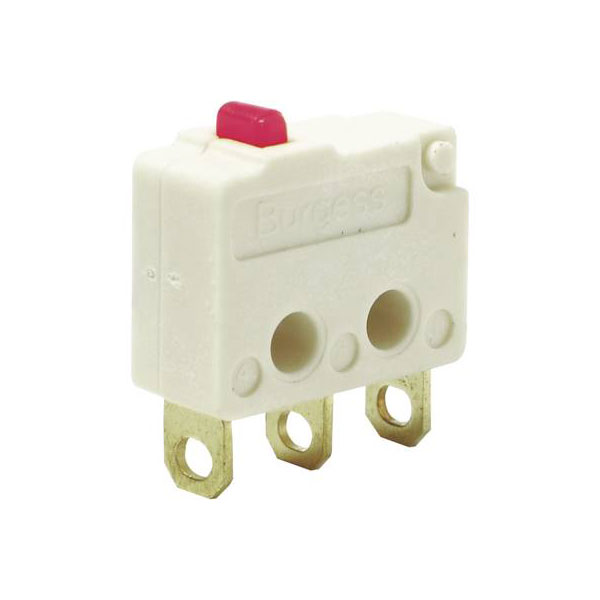

Image Representative of Range

Burgess F4T7YCUL Microswitch 250V AC 5A On/(On) IP40 Momentary UL-CSA

Burgess
Order Code:

08-7003

Brand: Burgess MPN: F4T7YCUL EAN-13: 2050000382444
Qty Unit Price (Ex VAT)
1+ £7.66
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
101 in stock, despatched in 4 working days

The Burgess F4T7YCUL Microswitch operates at 250 V AC with a 5 A capacity and features a momentary on/(on) function. It is a compact miniature switch with dimensions 12.8x10x5 mm and an IP40 rating, suitable for limited exposure to dust. Typical applications include use in consumer electronics and small mechanical devices requiring precise actuation.
Type Microswitch
Switch Function momentary
Current Rating (Amps) 5A
Actuating Force 0.7N
Contact Material Ag
Contact Type 1 change-over
Dim (L x W x H) 5 x 12.8 x 10 mm
Height 10mm
IP Rating IP40
Length 5mm
Max. temperature +85°C
Min. temperature -40°C
Misc Attribute 1 1 changer
Switch position 1 x On/(On)
Switching Capacity 5 A/250V AC
Switching Voltage 250V AC
Temperature Range -40 - +85°C
Width 12.8mm
