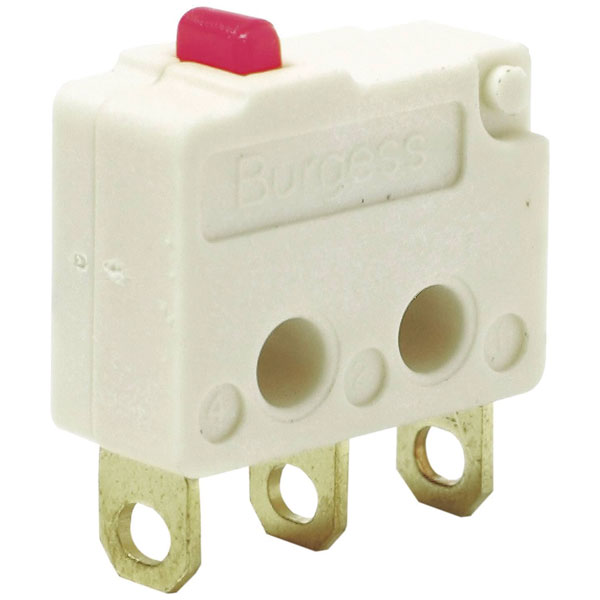

Burgess F4T7UL Microswitch 250VAC 5A Ultra Miniature IP40 Momentary

Burgess
Order Code:

08-7001

Brand: Burgess MPN: F4T7UL EAN-13: 2050000382420
Qty Unit Price (Ex VAT)
1+ £5.83
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
22 available to back orderBack-order availability date - 14/01/2026

The Burgess F4T7UL microswitch is a 250 V AC, 5 A momentary switch with a single On/(On) configuration and an IP40 rating. This miniature pressure switch has dimensions of 12.8 x 10 x 5 mm and features a plunger actuator. It is commonly used in applications requiring compact switches, such as consumer electronics and small appliances.
Type Microswitch
Switch Function momentary
Current Rating (Amps) 5A
Actuating Force 1.4N
Contact Material Ag
Contact Type 1 change-over
Dim (L x W x H) 5 x 12.8 x 10 mm
Height 10mm
IP Rating IP40
Length 5mm
Max. temperature +85°C
Min. temperature -40°C
Misc Attribute 1 1 changer
Switch position 1 x On/(On)
Switching Capacity 5 A/250V AC
Switching Voltage 250V AC
Temperature Range -40 - +85°C
Width 12.8mm
