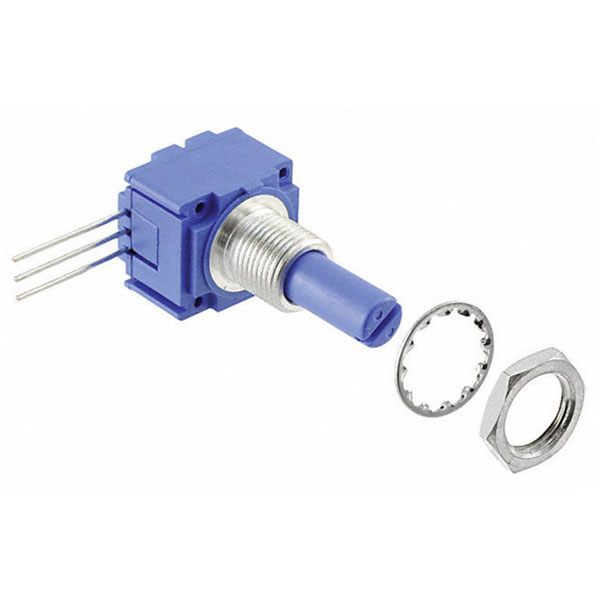

Bourns 91A1A-B28-A15L Single turn rotary pot 10 kΩ Mono 2 W

Bourns 91A1A-B28-A15L provides a reliable single turn rotary potentiometer, designed for applications requiring precision and durability. This slide potentiometer features a resistance value of 10 kO and can handle a power rating of 2 watts, making it suitable for a range of electronic devices that require accurate voltage regulation and tuning. The mono configuration ensures straightforward integration into circuits, providing consistency in performance. Commonly utilised in audio equipment, control panels, and instrumentation environments, this component offers engineers a dependable solution for managing variable resistance needs while maintaining space efficiency in circuit designs.

Type	91A1A-B28-A15L
Resistance	10kΩ
No of Turns	1
Power Rating	2W
Axle Diameter	6.32mm
Connection	THT
Content	1
Cut-off Voltage	141V
Dimensions	(L x W x H) 17.45 x 15.88 x 12.7 mm
Height	12.7mm
Impact Tolerance	45Ncm
Insulation Resistance	1GΩ
IP Rating	IP40
Length	17.45mm
Lever Length	22.23mm
Maximum Temperature	+125°C
Mechanical Angle	300°
Minimum Temperature	-40°C
Output	Mono
Product Type	Single turn rotary pot
Resistance characteristic	linear
Temperature Coefficient	150ppm/°C
Tolerance ±	10%
Torque (max.)	1.06Ncm
Width	15.88mm
