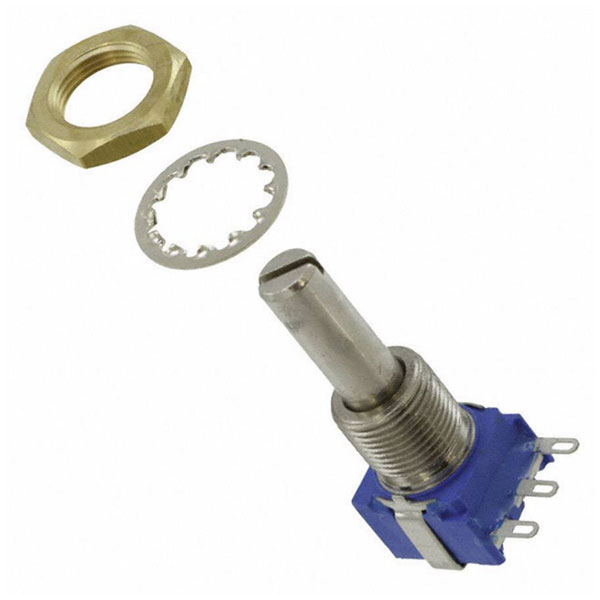

Bourns 53RAA-R25-A15L Single turn rotary pot Sealed 1 W 10 kΩ

Bourns 53RAA-R25-A15L is a single-turn rotary potentiometer designed to deliver reliable performance in various electronic applications. This sealed component can handle a power rating of 1 watt and features a resistance of 10 kilohms, making it suitable for precise resistance adjustments in circuits involving moderate power levels. Its construction ensures durability and longevity, aided by its sealed design, which protects against dust and moisture ingress. Engineers commonly employ this slide potentiometer in audio equipment, instrumentation, and control systems where dependable resistance modulation is essential.

Type	53RAA-R25-A15L
Resistance	10kΩ
No of Turns	1
Power Rating	1W
Axle Diameter	6mm
Connection	Solder tag
Content	1
Cut-off Voltage	100V
Dimensions	(L x W x H) 13.25 x 12.5 x 8.89 mm
Height	8.89mm
Impact Tolerance	56Ncm
Insulation Resistance	1GΩ
IP Rating	IP64
Length	13.25mm
Lever Length	25mm
Max. temperature	+125°C
Maximum Temperature	+125°C
Mechanical Angle	290°
Min. temperature	-40°C
Minimum Operating Temperature	-40°C
Output	Mono
Product Type	Single turn rotary pot
Resistance characteristic	linear
Temperature Coefficient	150ppm/°C
Tolerance ±	10%
Torque (max.)	0.35Ncm
Width	12.5mm
