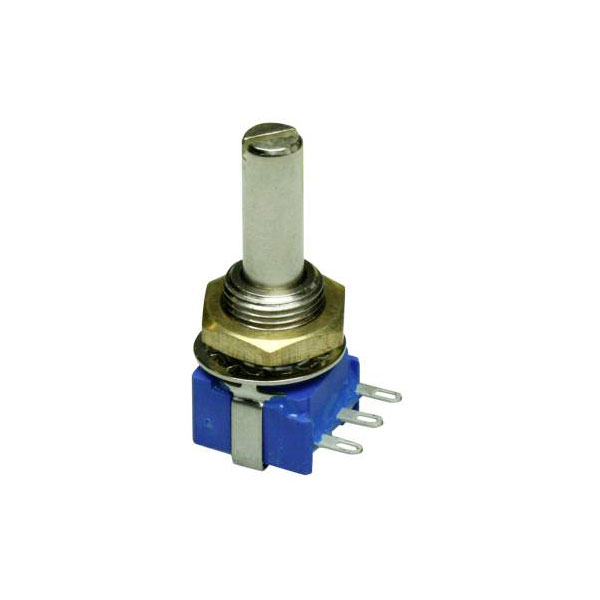

Bourns 53RAA-R25-A15L Cermet potentiometer 1 W 10 kΩ Rotary Potentiometers

Bourns 53RAA-R25-A15L is a cermet potentiometer designed to offer precision and reliability in a variety of applications. This rotary potentiometer has a resistance of 10 kO and can handle a power rating of 1 W, making it suitable for adjustment tasks requiring consistent performance, such as in audio equipment, instrumentation, and other electronic circuits that necessitate precise resistance tuning. Featuring a robust construction designed to withstand environmental variations, it ensures long-term stability and repeatability. The cermet material used in its construction enhances durability and temperature resistance, making it ideal for demanding engineering environments. Its characteristic rotary motion allows for smooth voltage division, providing engineers with fine control over circuit adjustments.

Type	53RAA-R25-A15L
Resistance	10kΩ
No of Turns	1
Power Rating	1W
Axle Diameter	6mm
Connection	Solder tag
Content	1
Dimensions	(L x W) 12.5 mm x 13.5 mm
Electrical Angle	270°
Length	12.5mm
Max. temperature	125°C
Maximum Temperature	125°C
Mechanical Angle	290°
Min. temperature	1°C
Minimum Operating Temperature	1°C
Product Type	Cermet potentiometer
Resistance characteristic	linear
Width	13.5mm
