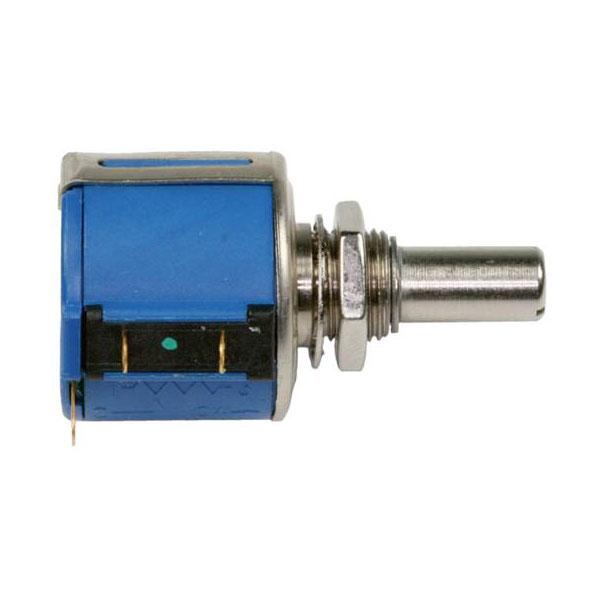

Bourns 3540S-1-104L Precision potentiometer 2 W 100 kΩ Rotary

Bourns 3540S-1-104L is a precision potentiometer designed to deliver reliable performance in a variety of engineered applications, offering a total resistance of 100 kO and a power rating of 2 watts. This rotary type potentiometer is meticulously constructed to provide precise control and adjustment of electrical circuits, featuring durable materials and high-resolution rotational capability. The device is ideal for applications requiring fine-tuning of resistance, such as audio equipment, instrumentation, and control systems. Its robust design ensures long-term stability and accuracy, making it an essential component in environments where precise resistance calibration is crucial.

Type	3540S-1-104L
Resistance	100kΩ
No of Turns	10
Power Rating	2W
Axle Diameter	6.34mm
Connection	Solder tag
Content	1
Dimensions	(L x W) 22.2 mm x 20 mm
Electrical Angle	3600°
Length	22.2mm
Max. temperature	125°C
Maximum Temperature	125°C
Mechanical Angle	3600°
Min. temperature	1°C
Minimum Operating Temperature	1°C
Product Type	Precision potentiometer
Resistance characteristic	linear
Width	20mm
