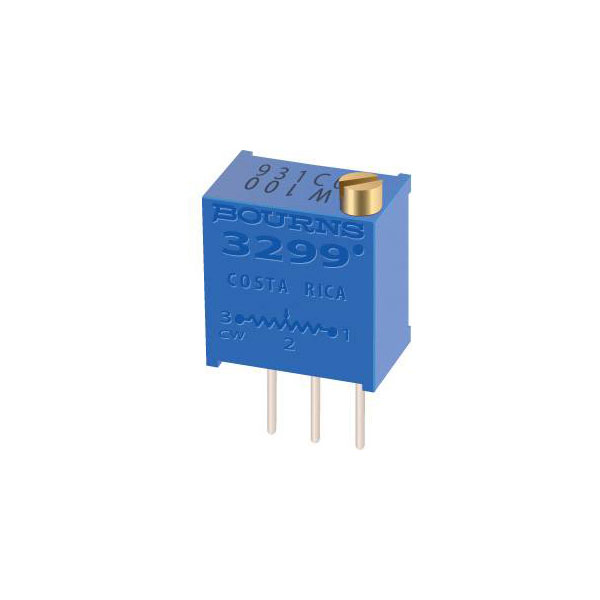

Bourns 3299W-1-203LF Trimmer Linear 0.5W 20kΩ 9° 1 pc Cermet

Bourns 3299W-1-203LF is known as a trimmer potentiometer with a power rating of 0.5 watts and a resistance of 20 kiloohms. This linear rotary potentiometer features an adjustment angle of 9 degrees and is manufactured using cermet material, providing excellent stability and reliability in precision tuning applications. The compact size and reliable performance make it suitable for use in various electronic circuits, including calibration equipment, communication devices, and medical instruments where precise adjustment is crucial. Known alternatively by the designation 2996239, this component serves as an essential part in fine-tuning voltage, current, and signal levels in complex systems.

Resistance	20kΩ
Power Rating	0.5W
Connection	Solder pins
Content	1
Cross Section	2.54mm
Dimensions	(L x W x H) 10.03 x 9.53 x 6.1 mm
Electrical Angle	9°
Height	6.1mm
Length	10.03mm
Maximum Temperature	125°C
Minimum Temperature	-55°C
No. of rotations	25
Operation type	top
Product Type	Cermet trimmer
Resistance characteristic	linear
Temperature Coefficient	100ppm/K
Tolerance ±	10%
Width	9.53mm
