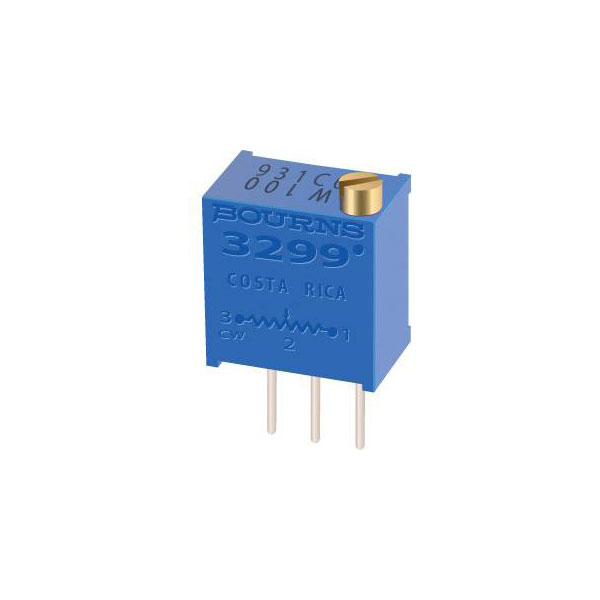

Bourns 3299W-1-104LF Cermet trimmer linear 0.5 W 100 kΩ 9° 1 pc

Bourns 3299W-1-104LF, also known as part number 2996237, is a high-quality cermet trimmer potentiometer designed for precise resistance adjustment in electronic circuits. With a resistance value of 100 kO and a linear taper, this trimmer is capable of handling up to 0.5 watts of power. The device is engineered with a 9° adjustment angle offering fine control and precision in tuning applications. Typical engineering applications include use in calibration circuits, sensor networks, and audio and radio frequency equipment, where precise resistance setting is essential. The Bourns 3299W-1-104LF is a reliable choice for high-performance circuits that require stability and repeatability in varying environmental conditions.

Type	Cermet Trimmer
Resistance	100kΩ
Tolerance	± 10%
Power Rating	0.5W
Adjustment Type	Top
Number of Turns	25
Pitch	2.54mm
Connection	Solder pins
Content	1
Cross Section	2.54mm
Dimensions	(L x W x H) 10.03 x 9.53 x 6.1 mm
Electrical Angle	9°
Height	6.1mm
Length	10.03mm
Maximum Temperature	125°C
Minimum Temperature	-55°C
Operation type	top
Resistance characteristic	linear
Temperature Coefficient	100ppm/K
Tolerance ±	10%
Width	9.53mm
