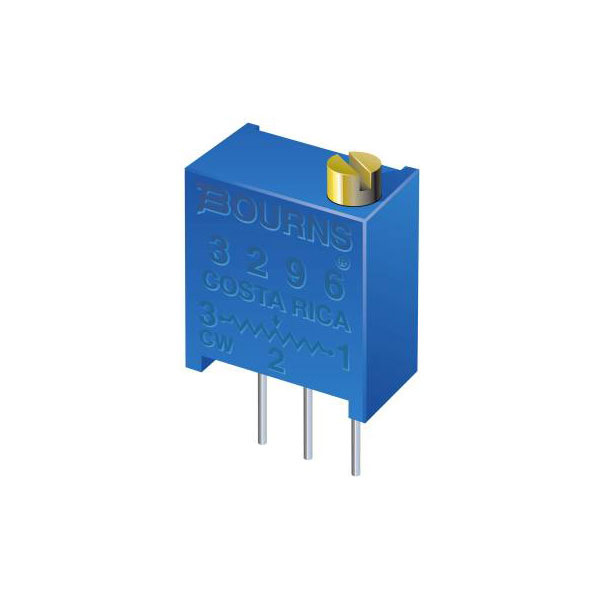

Bourns 3296W-1-100LF Cermet trimmer 0.5 W 10 Ω 9 ° single piece

Bourns 3296W-1-100LF is a precision cermet trimmer potentiometer designed for fine-tuning electrical parameters with high accuracy. Rated at 0.5 watts, this component features a 10 O resistance value and a 9° adjustment span, making it ideal for applications requiring precise resistance variance in compact spaces. Engineers often employ this trimmer in circuit designs for calibration of telemetry systems, precision instrumentation, and audio equipment, where reliability and consistency are critical. The 3296W-1-100LF's robust construction ensures stability and endurance, while its alternative description, 2996180, signifies its role as an essential component in fields demanding meticulous control of electrical characteristics.

Type	Cermet Trimmer
Resistance	10O
Tolerance	± 10%
Power Rating	0.5W
Adjustment Type	Top
Number of Turns	25
Pitch	2.54mm
Connection	Solder pins
Content	1
Cross Section	2.54mm
Dimensions	(L x W x H) 9.53 x 4.83 x 10.03 mm
Electrical Angle	9°
Height	10.03mm
Length	9.53mm
Maximum Temperature	125°C
Minimum Temperature	-55°C
Operation type	top
Temperature Coefficient	100ppm/K
Tolerance ±	10%
Width	4.83mm
