Block USTE 100/2x115 Control Transformer 208-600V AC 100VA

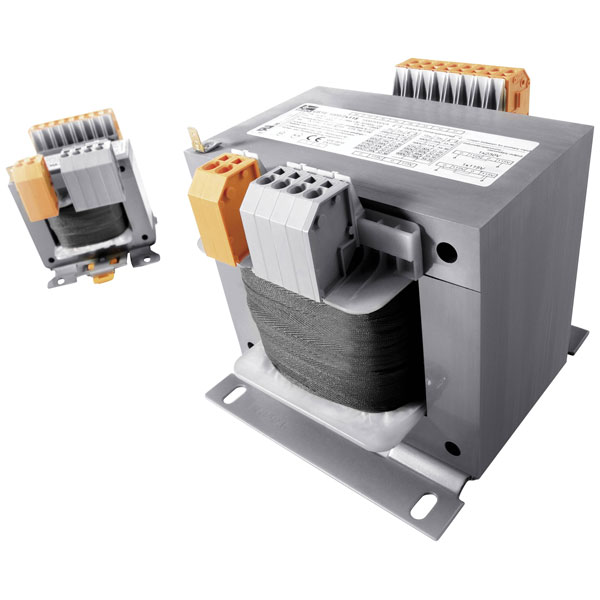

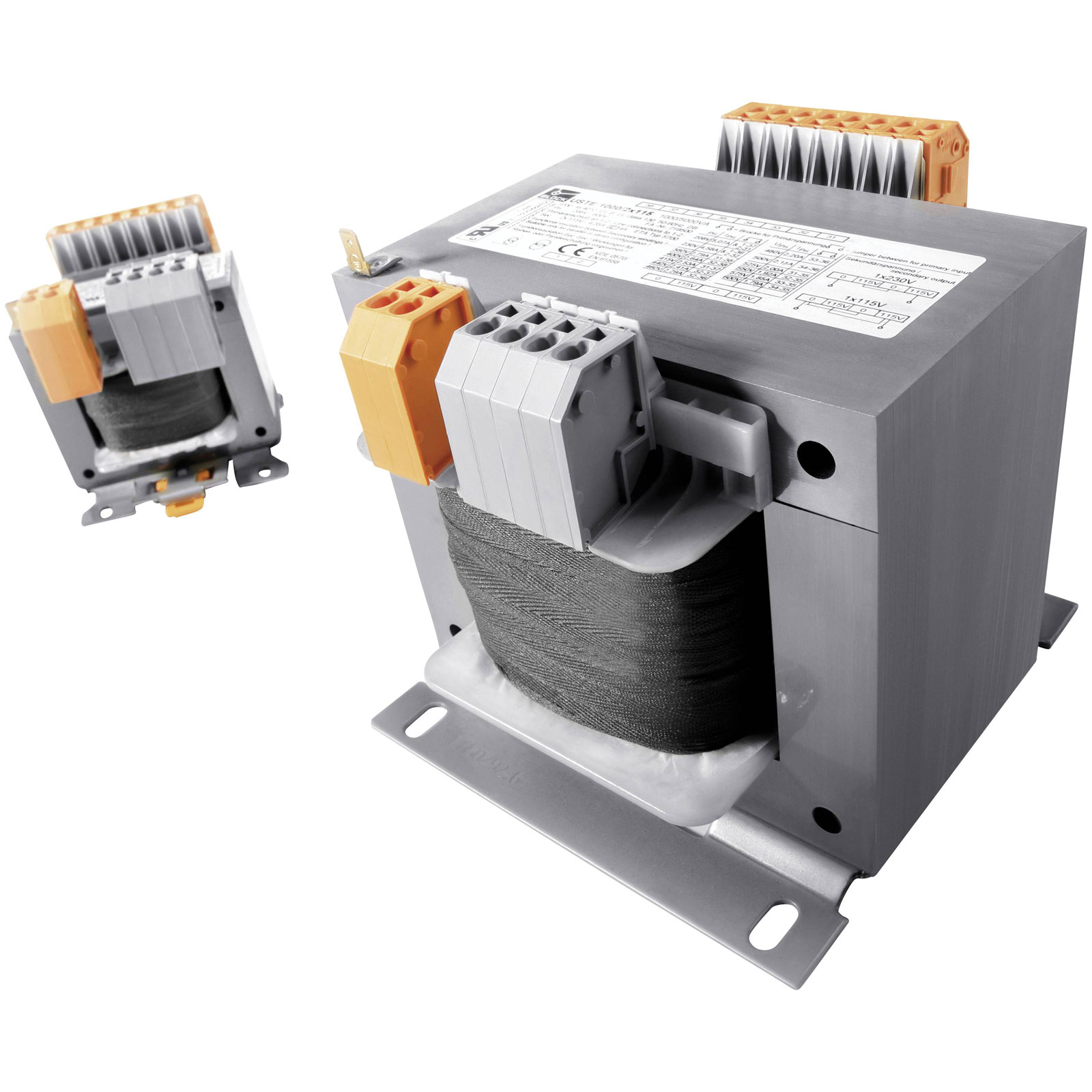

Image Representative of Range

Block USTE 100/2x115 Control Transformer 208-600V AC 100VA

Block
Standard range
Order Code:

01-6444

Brand: Block MPN: USTE 100/2x115
Qty Unit Price (Ex VAT)
1+ £81.88
25+ £77.78
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
7 in stock, despatched in 4 working days

Block's USTE 100/2x115 is a versatile control and isolation transformer. It supports multiple voltages, ranging from 208 V to 600 V AC, with a power rating of 100 VA. Ideal for automation systems, it serves as a safety transformer and universal mains transformer in industrial and commercial applications.
Connection Spring-loaded terminal
Design type Open
Dim (L x W x H) 85 x 84 x 96 mm
Efficiency 87%
Frequency 50 - 60Hz
Height 96mm
Input voltage (number x voltage) 1 x 208 V AC, 230 V AC, 380 V AC, 400 V AC, 415 V AC, 440 V AC, 460 V AC, 480 V AC, 500 V AC, 525 V AC, 550 V AC, 575 V AC, 600 V AC
Insulation class VDE = B, UL = class 130
Length 85mm
Max. ambient temperature +40°C
Misc Attribute USTE 100/2x115
No. of inputs 1
No. of outputs 2
Output voltage (number x voltage) 2 x 115 V AC, 230 V AC
Power 100VA
Protection class I
RoHS-compliant Yes
Standards VDE 0570 Part 2-2, DIN EN 61558-2-2, EN 61558-2-2, IEC EN 61558-2-2, UL 5085-1/2, CSA 22.2 No.66
Test mark cULus Listed
Type Control transformer
Weight 2.10kg
Width 84mm
