Block TIM 200 Isolation Transformer 230/115V 200VA Short Circuit Protected

Block
Order Code:

11-5060

Brand: Block MPN: TIM 200 EAN-13: 4016138632149
Qty Unit Price (Ex VAT)
1+ £76.07
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack order, lead time 11 days

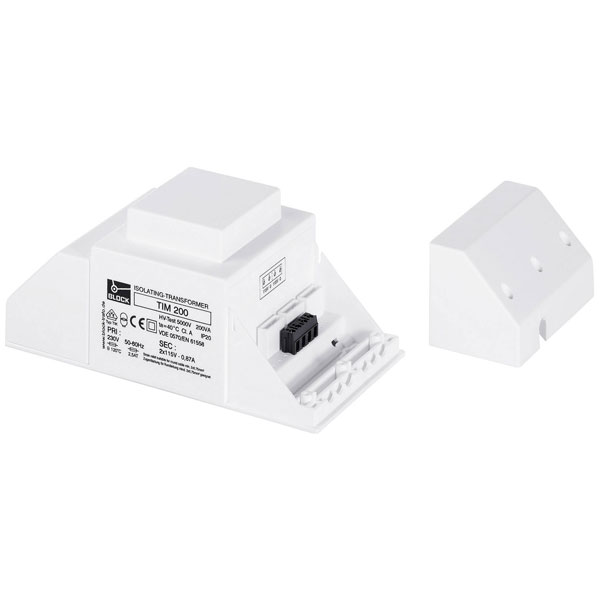

Block manufactures the TIM 200, a 200 VA isolation transformer that converts 230 V AC to dual 115 V AC outputs. This transformer is ideal for safety and power applications, providing a secure electrical separation for automation systems. Weighing 3.6 kg, it is commonly used in universal and mains transformer roles.
Type Isolation transformer
Connection Screw terminal
Design type Encapsulated, cast in insulated casing
Fitting method Hole opening in terminal connection box
Frequency 50 - 60Hz
Input voltage (number x voltage) 1 x 230 V AC
Insulation class A
Max. ambient temperature +40°C
Mounting Type Screw fastening
Number of Inputs 1
Number of Outputs 2
Output voltage (number x voltage) 2 x 115 V AC
Power 200VA
Primary Voltage 230V
Protection Class II
Standards As per IEC 61558-2-4, DIN EN 61558-2-4, VDE 0570 Part 2-4
Test mark VDE
