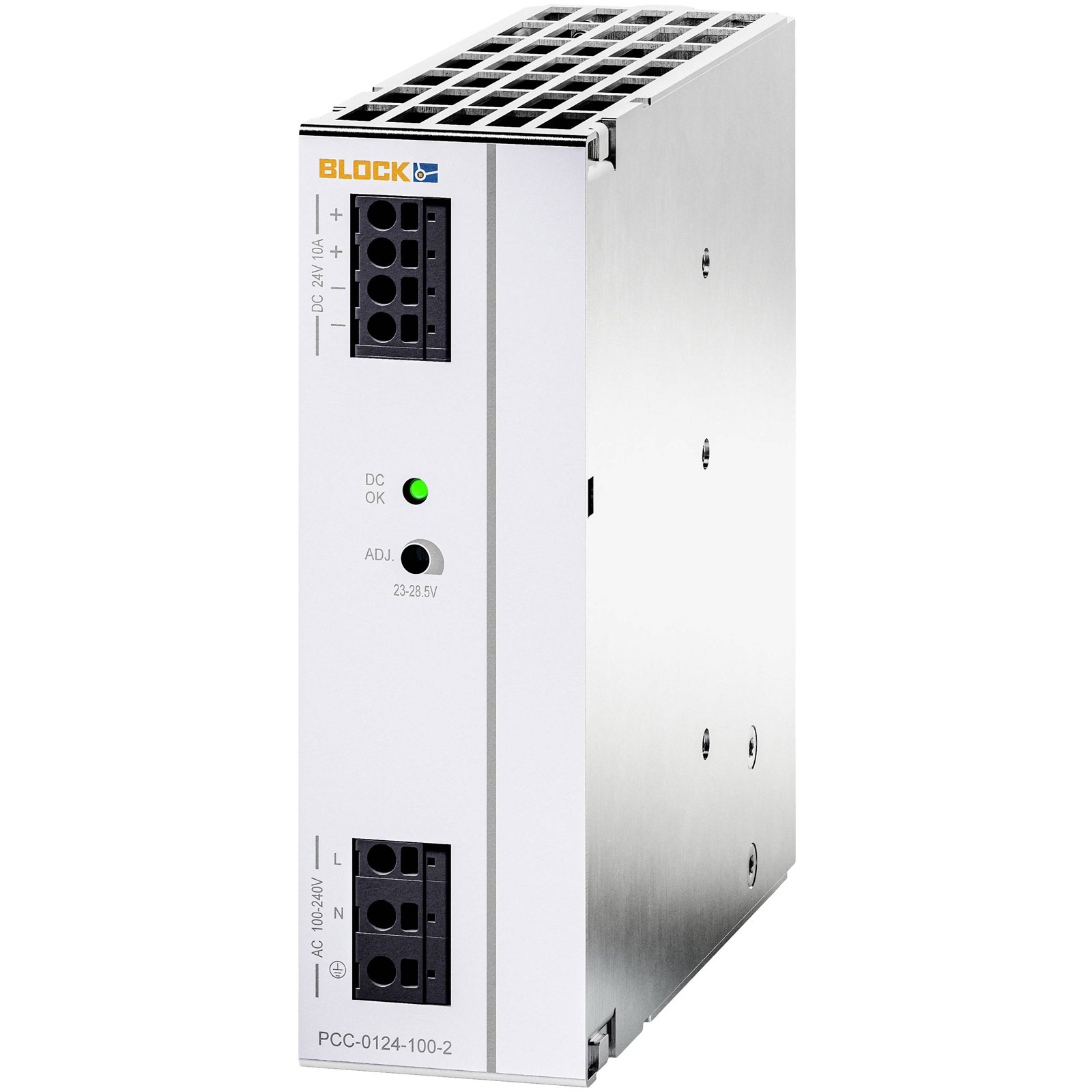

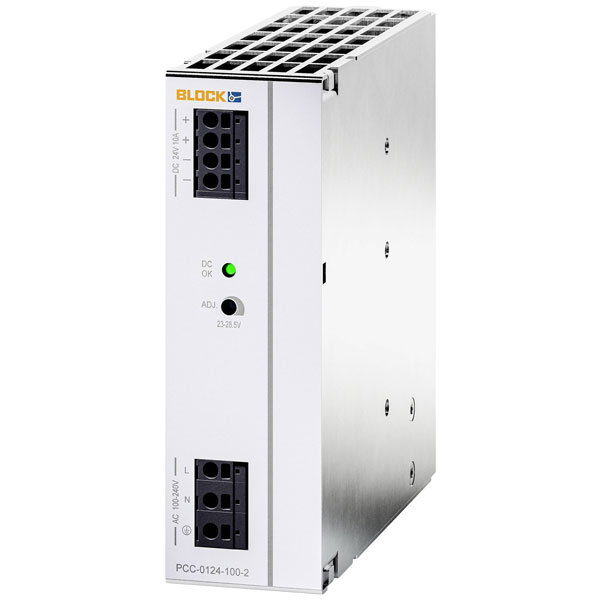

Block PCC-0124-100-2 SMPSU Power Supply 24V 10A 240W Compact Robust

Block
Standard range
Order Code:

01-6387

Brand: Block MPN: PCC-0124-100-2
Qty Unit Price (Ex VAT)
1+ £89.14
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
5 in stock, despatched in 4 working days

The Block PCC-0124-100-2 SMPSU is an industrial power supply unit providing 24 V DC at 10 A with a total power output of 240 W. This din rail power supply module is perfect for supplying stable power in various industrial automation applications. Designed for easy installation, it features a single output and is supplied as one piece per package.
Type SMPSU
Dim (L x W x H) 134 x 40 x 127 mm
Efficiency 93.5%
Height 127mm
Input Voltage 90 – 264 V/AC;
90 - 374V DC
Inputs 1
Length 134mm
Manufacturer part # PCC-0124-100-2
Max. output current 10A
Max. temperature +70°C
Min. temperature -25°C
Misc Attribute PCC-0124-100-2
MTBF 500000h
No. of outputs 1
Nominal input voltage 100 - 240 V/AC
Output current (max.) - rounded 10A
Output voltage 24V DC
Output voltage (max.) 28.5V DC
Output voltage (min.) 23V DC
Output voltage (nominal) 24V DC
Phases 1
Power 240W
Width 40mm
