Block PC-0324-400-0 Power Compact RCCB 24V DC 40A 960W 1 Output

Block
Order Code:

01-6378

Brand: Block MPN: PC-0324-400-0 EAN-13: 4016139042978
Qty Unit Price (Ex VAT)
1+ £288.72
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
1 in stock, despatched in 4 working days

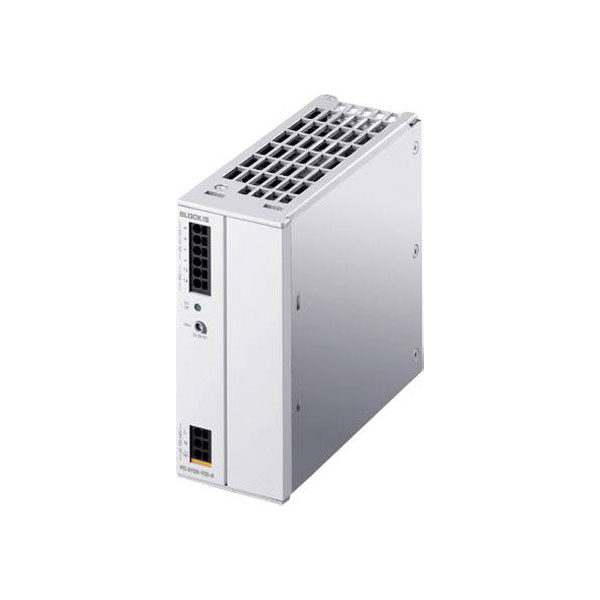

Block manufactures the PC-0324-400-0, a din rail power supply unit designed for industrial applications. It delivers 24 V DC with a maximum current of 40 A and a power output of 960 W. This rail mount power supply module is ideal for powering industrial automation and control systems.
Type RCCB
Output Voltage 24V DC
Connection Push-in connector
Dim (L x W x H) 170 x 126 x 127 mm
Efficiency 92.5%
Height 127mm
Input Voltage 320 - 575 V/AC
450 - 800V DC
Input voltage (max.) 575V AC
Inputs 1
IP Rating IP20
Length 170mm
Max. output current 40A
Max. temperature +70°C
Min. input voltage 320V AC
Min. temperature -25°C
MTBF 500000h
Nominal Input Voltage 400 - 500 V/AC
Number of Outputs 1
Output current (max.) - rounded 40A
Output voltage (max.) 28.5V DC
Output voltage (min.) 23V DC
Output voltage (nominal) 24V DC
Phases 3
Power 960W
Width 126mm
