Block PC-0324-200-2 Power Compact RCCB 24V DC 20A 480W Output 1x 1pc

Block
Standard range
Order Code:

01-6377

Brand: Block MPN: PC-0324-200-2
Qty Unit Price (Ex VAT)
1+ £189.27
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
1 in stock, despatched in 4 working days

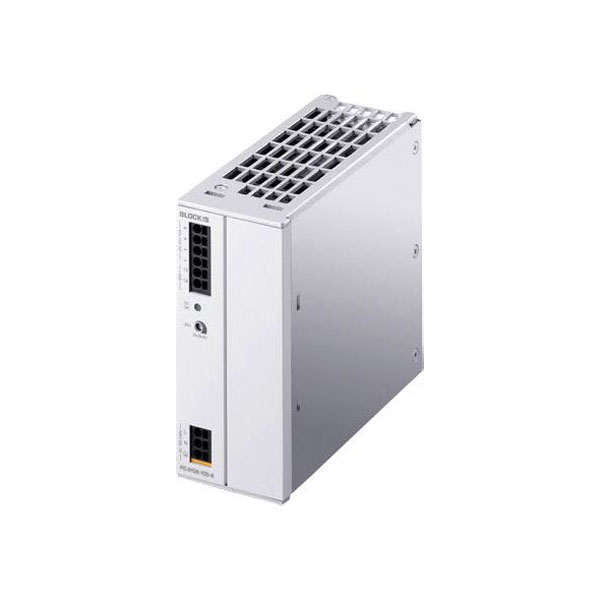

The Block PC-0324-200-2 RCCB is a din rail power supply unit providing 24 V DC at 20 A with 480 W output. Ideal for industrial applications, it offers reliable power delivery with one output. This robust power supply is suited for installation within control panels or machinery setups.
Type RCCB
Connection Push-in connector
Dim (L x W x H) 160 x 80 x 127 mm
Efficiency 92%
Height 127mm
Input Voltage 320 - 575 V/AC
450 - 800V DC
Input voltage (max.) 575V AC
Inputs 1
IP rating IP20
Length 160mm
Manufacturer part # PC-0324-200-2
Max. output current 20A
Max. temperature +70°C
Min. input voltage 320V AC
Min. temperature -25°C
Misc Attribute PC-0324-200-2
MTBF 500000h
No. of outputs 1
Nominal input voltage 400 - 500 V/AC
Output current (max.) - rounded 20A
Output voltage 24V DC
Output voltage (max.) 28.5V DC
Output voltage (min.) 23V DC
Output voltage (nominal) 24V DC
Phases 3
Power 480W
Weight 1510g
Width 80mm
