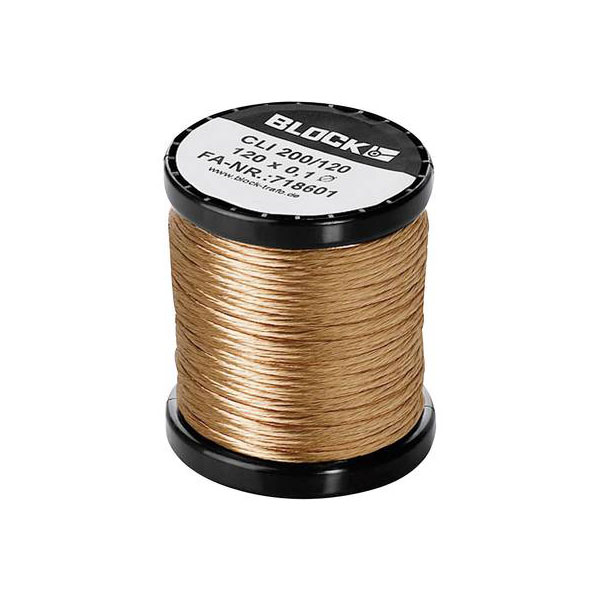

Block CLI 200/60 Enamel-Coated Copper Wire 0.10mm Dia 48m 0.20kg

Block
Extended range
Order Code:

11-4994

Brand: Block MPN: CLI 200/60 EAN-13: 4016138670059
Qty Unit Price (Ex VAT)
1+ £26.52
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack order, lead time 8 days

Block Enameled wire has an outside diameter of 0.10 mm and weighs 0.20 kg. It is 48 meters long and is commonly used in applications such as inductive coils and transformers. The copper wire is enamel-coated, ensuring insulation and durability for electronic components.
Insulation material Polyurethane
Cable features Enameled
Cable type CLI 200
Certification marks IEC 6031 7-11
Core layout 60 x 0.1mm
Cross section 1 x 0.471 mm²
Cross section (each core) 0.471mm²
Current load capacity 1.68A
Halogen-free No
Material (details) Electrolytic copper
Max. temperature range (fixed installation) +130°C
Max. temperature range (flexible installation) +130°C
No. of leads 1
Outside diameter (incl. coating) 0.10mm
Packaged Yes
Sold per metre No
Surface Polished
Type Enamel-coated copper wire
Weight 0.20kg
