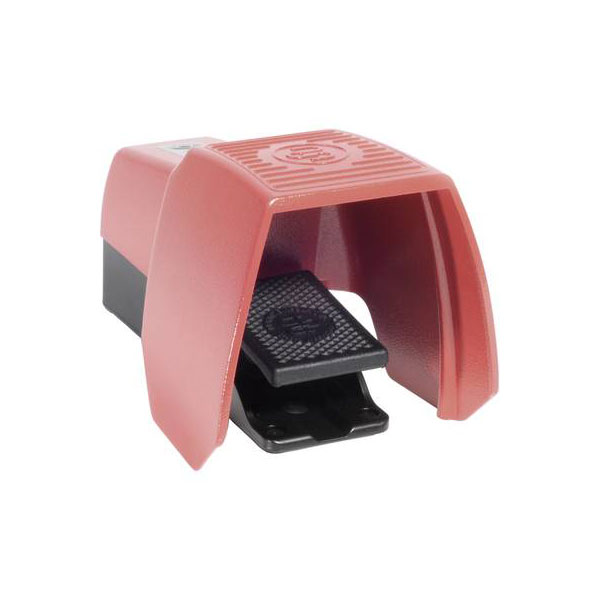

Bernstein Ltd. 6061800012 Foot Switch 240V AC 10A 1-Pedal Cover IP65

Bernstein's foot switch model F1-SU1Z UN operates at 240 V AC and 10 A, featuring a single pedal with a protective cover. It is designed with an IP65 rating, ensuring resistance to dust and water ingress. Typical applications include machinery control and safety in industrial environments.

Type	Foot switch
Contact Configuration	momentary
Operation	1-pedal
Switching Current	10A
Voltage Rating	240V AC
Colour	Red
Connection	Screws
Degree of protection (IP)	IP65
Degree of protection (NEMA)	1
Depth	250mm
Height	145mm
IP Rating	IP65
Material	Metal
Max. temperature	+80°C
Min. temperature	-30°C
Misc Attribute	F1-SU1Z UN
Number of contacts as change-over contact	0
Number of contacts as normally closed contact	1
Number of contacts as normally open contact	1
Number of Switch Positions	2
Rated operation current Ie at AC-15, 230 V	3A
Suitable for safety functions	true
Switch position	1 x Off/(On)
Switch/button features	+ protective cover
Switching function latching	false
Thread Size	M20
Type of command	On or off
Width	156mm
With interlocking	false
With protection hood	true
With protective insulation	false
