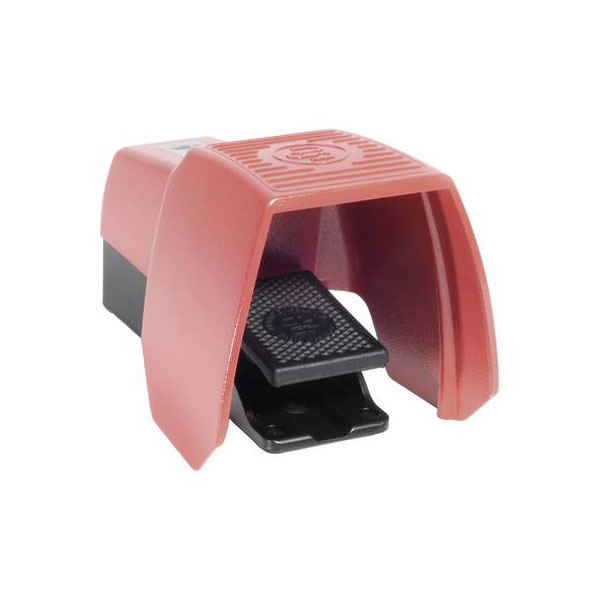

Bernstein Ltd. 6061600006 Foot Switch 1-Pedal 240V 10A w/Cover IP65

The Bernstein foot switch model F1-U1Z UN operates at 240 V AC with a 10 A capacity, featuring a single pedal and a protective cover. Manufactured by Bernstein AG, it's designed with an IP65 rating for enhanced durability and safety in industrial environments. This reliable switch is ideal for controlling machinery and equipment where hands-free operation is essential.

Type	Foot switch
Contact Configuration	momentary
Operation	1-pedal
Switching Current	10A
Voltage Rating	240V AC
Colour	Red
Connection	Screws
Degree of protection (IP)	IP65
Degree of protection (NEMA)	1
Depth	250mm
Height	145mm
IP Rating	IP65
Material	Metal
Max. temperature	+80°C
Min. temperature	-30°C
Misc Attribute	F1-U1Z UN
Number of contacts as change-over contact	0
Number of contacts as normally closed contact	1
Number of contacts as normally open contact	1
Number of Switch Positions	2
Rated operation current Ie at AC-15, 230 V	3A
Suitable for safety functions	true
Switch position	1 x Off/(On)
Switch/button features	+ protective cover
Switching function latching	false
Thread Size	M20
Type of command	On or off
Width	156mm
With interlocking	false
With protection hood	true
With protective insulation	false
