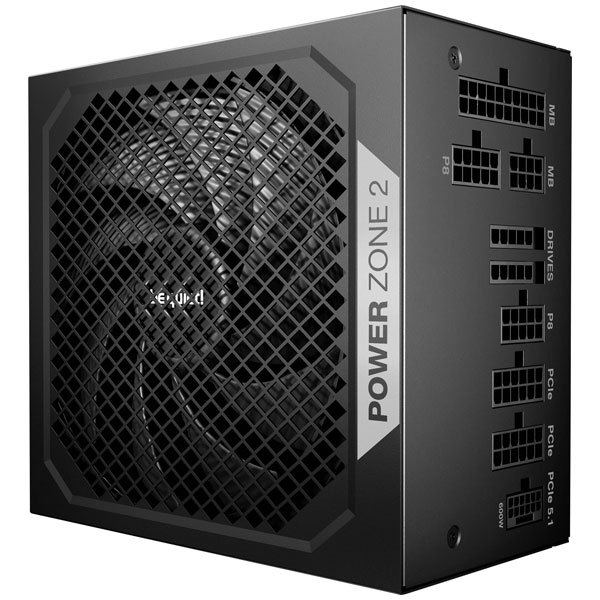

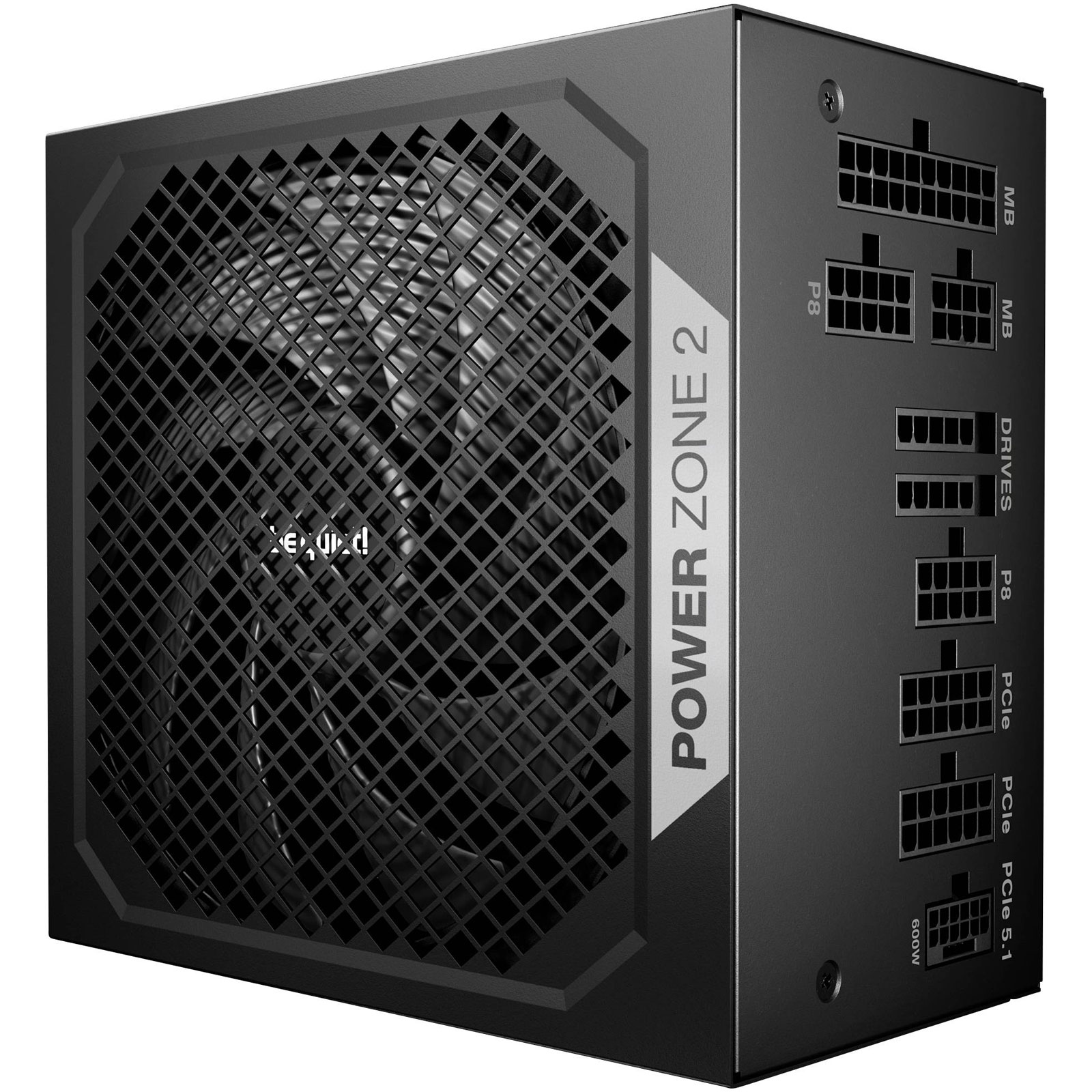

BeQuiet BP007EU is a POWER ZONE 2 Power Supply Unit designed for high-performance computing applications, offering an 850W power output with an ATX form factor. This unit boasts an 80 PLUS Platinum efficiency certification, ensuring minimal energy loss and exceptional reliability during operation. Suitable for integration into desktop PCs requiring stable and efficient power delivery, it is ideal for demanding tasks such as gaming, video editing, and workstation applications. Its advanced design and robust build quality make it a preferred choice for engineers and system builders seeking a dependable mains unit for both personal and professional computing environments.
| Power Rating |
751 W - |
| +12 V/DC |
70.8A |
| +5V / DC |
3A |
| -12V / DC |
0.5A |
| 3.3V DC |
20A |
| 4-pin Molex |
1 |
| 5 V DC |
20A |
| 5-pin SATA |
7 |
| 6-pin PCIe |
3 |
| 80 PLUS certification |
80 PLUS Platinum |
| AC input frequency |
50/60 Hz |
| AC input voltage |
100 - 240 V |
| ATX version |
3.1 |
| Bearing technology |
Rifle |
| Cable ties included |
Yes |
| Cabling type |
Fully-Modular |
| Colour |
Black |
| Combined power (+12V) |
849.6 W |
| Combined power (+3.3V) |
120 W |
| Combined power (+5V) |
120 W |
| Combined power (+5Vsb) |
15 W |
| Combined power (-12V) |
6 W |
| Compliance certificates |
BSMI, CB, CCC, CE, Federal Communications Commission (FCC), RCM, RoHS, TÜV mark, UKCA, WEEE |
| Cooling |
Active |
| Cooling type |
Active |
| CPU P4 connector (4-pin) |
1 |
| CPU power cable length |
70cm |
| CPU power connector (4+4 pin) |
Yes |
| Depth |
160mm |
| Dimensions |
(W x H x D) 150 x 86 x 160 mm |
| Efficiency |
92.3% |
| EPS power connector (8-pin) |
Yes |
| EPS version |
2.92 |
| Fan diameter |
14 cm |
| Height |
86mm |
| Hold time |
21.1 ms |
| Manual |
Yes |
| Manual languages |
German, English, Spanish, French, Polish, Russian, Ukrainian |
| Max output current (+12V) |
70.8 A |
| Max output current (+3.3V) |
20 A |
| Max output current (+5V) |
20 A |
| Max output current (+5Vsb) |
3 A |
| Max output current (-12V) |
0.5 A |
| Maximum input current (@110V) |
10 A |
| Maximum input current (@220V) |
5 A |
| Mean time between failures (MTBF) |
100000 h |
| Motherboard power cable length |
60cm |
| Motherboard power connector |
20+4 pin ATX |
| Noise Level |
24.9 dB |
| Number of +12V rail(s) |
1 |
| Number of fans |
1 fan(s) |
| Number of SATA power connectors |
7 |
| On/off switch |
Yes |
| Operating relative humidity (H-H) |
0 - 85% |
| Operating temperature (T-T) |
0 - 40 °C |
| Operating Voltage |
100 - 240 V |
| Package depth |
328mm |
| Package height |
102mm |
| Package type |
Box |
| Package weight |
3.21 kg |
| Package width |
248mm |
| PCI Express power cable length |
60cm |
| PCI Express power connectors (16-pin) |
1 |
| PCI Express power connectors (6+2 pin) |
3 |
| Peak power |
920 W |
| Peripheral (Molex) power cable length |
1000mm |
| Peripheral (Molex) power connectors (4-pin) |
1 |
| Power Factor |
0.98 |
| Power protection features |
Over current, Over power, Over voltage, Overheating, Short circuit, Surge & inrush, Under voltage |
| Power supply |
100 - 240V |
| Power supply unit (PSU) form factor |
ATX |
| Product colour |
Black |
| Product Type |
PC power supply unit |
| Products per shipping (inner) case |
6 pc(s) |
| PSU output power |
850W |
| Purpose |
PC |
| SATA power cable length |
550,700,850,1000 mm |
| Screws included |
Yes |
| Shipping (inner) case gross weight |
19.3 kg |
| Shipping (inner) case height |
34.6cm |
| Shipping (inner) case length |
65.1cm |
| Shipping (inner) case width |
28.2cm |
| Storage relative humidity (H-H) |
0 - 95% |
| Storage temperature (T-T) |
-40 - 70 °C |
| Sustainability certificates |
ENERGY STAR, ErP, Triman |
| Total power |
850 W |
| Type |
PC power supply unit |
| Waste Electrical and Electronic Equipment (WEEE) compliance |
Yes |
| Weight |
3kg |
| Width |
150mm |
