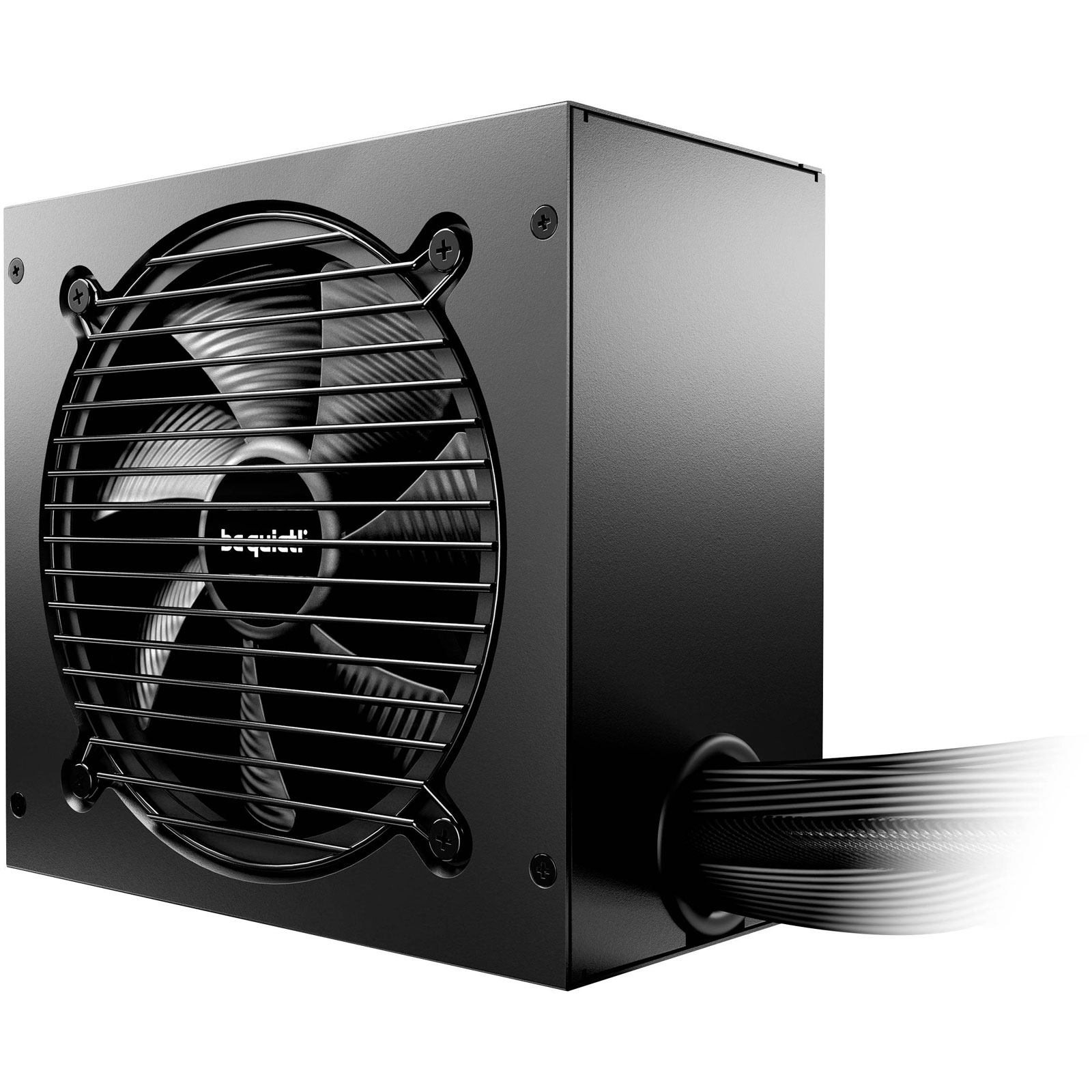

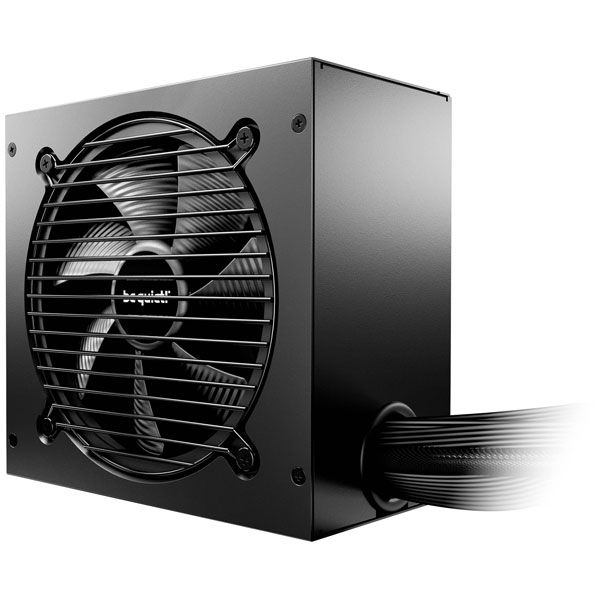

BeQuiet BP004EU is a robust computer power supply unit designed to deliver reliable power with precision and efficiency, as part of the PURE POWER 12 series. Featuring an ATX design, this PSU is rated at 850 watts and holds an 80 PLUS Gold certification, which signifies its high efficiency in converting AC to DC power. Engineers and system builders will appreciate its capability to support power-intensive components in high-performance computing environments, making it suitable for gaming rigs and workstation applications. This power mains unit provides consistent power delivery with reduced power wastage, supporting stability and longevity of sensitive electronic components.
| Power Rating |
751 W - |
| +5V / DC |
3A |
| -12V / DC |
0.3A |
| 3.3V DC |
22A |
| 4-pin Molex |
1 |
| 5 V DC |
22A |
| 5-pin SATA |
6 |
| 6-pin PCIe |
3 |
| 80 PLUS certification |
80 PLUS Gold |
| AC input frequency |
50/60 Hz |
| AC input voltage |
100 - 240 V |
| ATX version |
3.1 |
| Bearing technology |
Rifle |
| Cable tie(s) included |
Yes |
| Cables included |
AC |
| Cabling type |
Non-Modular |
| Colour |
Black |
| Combined power (+12V) |
850 W |
| Combined power (+3.3V) |
120 W |
| Combined power (+5V) |
120 W |
| Combined power (+5Vsb) |
15 W |
| Combined power (-12V) |
3.6 W |
| Compliance certificates |
CB, CE, Federal Communications Commission (FCC), RoHS, UKCA, WEEE, cTUVus |
| Cooling |
Active |
| Cooling type |
Active |
| CPU power cable length |
60cm |
| CPU power connector (4+4 pin) |
Yes |
| Depth |
160mm |
| Dimensions |
(W x H x D) 86 x 150 x 160 mm |
| Efficiency |
90.5% |
| EPS version |
2.92 |
| Fan diameter |
12 cm |
| Height |
150mm |
| Hold time |
17.34 ms |
| Max output current (+12V1) |
70.9 A |
| Max output current (+3.3V) |
22 A |
| Max output current (+5V) |
22 A |
| Max output current (+5Vsb) |
3 A |
| Max output current (-12V) |
0.3 A |
| Maximum input current (@110V) |
12 A |
| Maximum input current (@220V) |
6 A |
| Mean time between failures (MTBF) |
100000 h |
| Motherboard power cable length |
55cm |
| Motherboard power connector |
20+4 pin ATX |
| Noise Level |
25.1 dB |
| Number of +12V rail(s) |
1 |
| Number of fans |
1 fan(s) |
| Number of SATA power connectors |
6 |
| On/off switch |
Yes |
| Operating relative humidity (H-H) |
0 - 90% |
| Operating temperature (T-T) |
0 - 40 °C |
| Operating Voltage |
100 - 240 V |
| Package depth |
320mm |
| Package height |
210mm |
| Package weight |
3.1 kg |
| Package width |
133mm |
| PCI Express power cable length |
60cm |
| PCI Express power connectors (12-pin) |
1 |
| PCI Express power connectors (6+2 pin) |
3 |
| Peak power |
900 W |
| Peripheral (Molex) power cable length |
800mm |
| Peripheral (Molex) power connectors (4-pin) |
1 |
| Power Factor |
0.98 |
| Power Factor Correction (PFC) type |
Active |
| Power supply |
100 - 240V |
| Power supply unit (PSU) form factor |
ATX |
| Product colour |
Black |
| Product Type |
PC power supply unit |
| Products per shipping (inner) case |
4 pc(s) |
| PSU output power |
850W |
| Purpose |
PC |
| SATA power cable length |
500,650,800,950 mm |
| Screws included |
Yes |
| Shipping (inner) case height |
34cm |
| Shipping (inner) case length |
56cm |
| Shipping (inner) case net weight |
13.4 kg |
| Shipping (inner) case width |
24cm |
| Storage relative humidity (H-H) |
0 - 95% |
| Storage temperature (T-T) |
-20 - 70 °C |
| Sustainability certificates |
ENERGY STAR, ErP, Triman |
| Total power |
850 W |
| Type |
PC power supply unit |
| Warranty period |
10 year(s) |
| Weight |
2.7kg |
| Width |
86mm |
