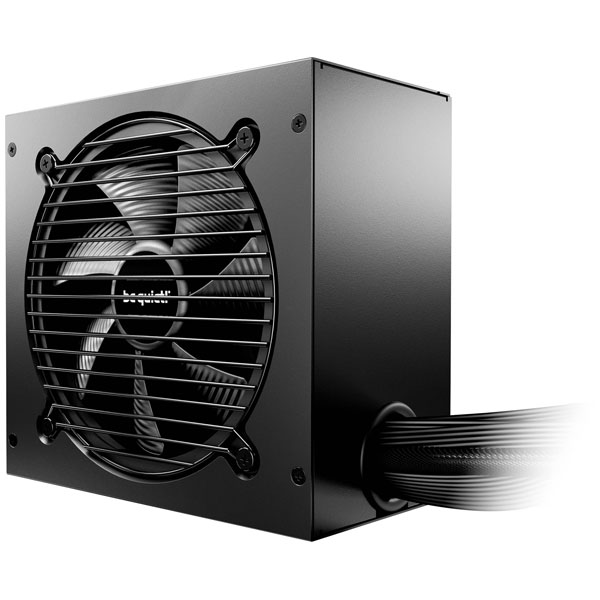

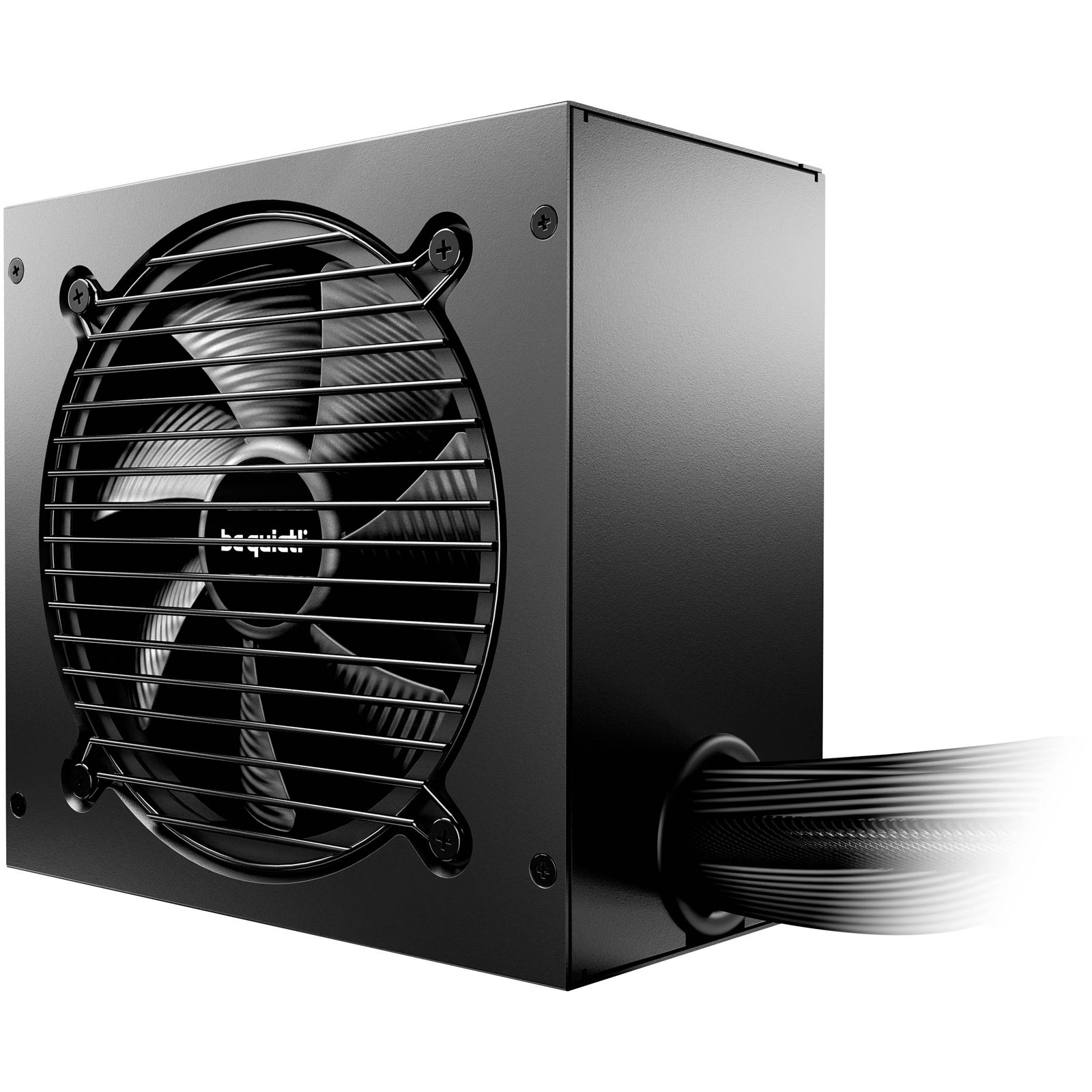

BeQuiet BP003EU PURE POWER 12 750W ATX 80 PLUS Gold Power Supply Unit is a high-efficiency power supply unit designed for computer systems requiring stable and dependable power delivery. With an output capacity of 750 watts, it caters to the demanding requirements of modern personal computing environments. This PSU is certified with an 80 PLUS Gold rating, ensuring that it delivers energy efficiently while minimising excess heat and energy waste. The unit supports a range of ATX form factor computer setups, making it suitable for use in both gaming rigs and advanced workstations. It is especially beneficial in applications where consistent voltage regulation and low noise levels are critical, typical in the deployment of high-performance computing environments.
| Power Rating |
501 - 750 W |
| +5V / DC |
3A |
| -12V / DC |
0.3A |
| 3.3V DC |
20A |
| 4-pin Molex |
1 |
| 5 V DC |
20A |
| 5-pin SATA |
6 |
| 6-pin PCIe |
3 |
| 80 PLUS certification |
80 PLUS Gold |
| AC input frequency |
50/60 Hz |
| AC input voltage |
100 - 240 V |
| ATX version |
3.1 |
| Bearing technology |
Rifle |
| Cable tie(s) included |
Yes |
| Cables included |
AC |
| Cabling type |
Non-Modular |
| Colour |
Black |
| Combined power (+12V) |
750 W |
| Combined power (+3.3V) |
120 W |
| Combined power (+5V) |
120 W |
| Combined power (+5Vsb) |
15 W |
| Combined power (-12V) |
3.6 W |
| Compliance certificates |
CB, CE, Federal Communications Commission (FCC), RoHS, UKCA, WEEE, cTUVus |
| Cooling |
Active |
| Cooling type |
Active |
| CPU power cable length |
60cm |
| CPU power connector (4+4 pin) |
Yes |
| Depth |
160mm |
| Dimensions |
(W x H x D) 86 x 150 x 160 mm |
| Efficiency |
90.7% |
| EPS version |
2.92 |
| Fan diameter |
12 cm |
| Height |
150mm |
| Hold time |
17.04 ms |
| Max output current (+12V1) |
62.5 A |
| Max output current (+3.3V) |
20 A |
| Max output current (+5V) |
20 A |
| Max output current (+5Vsb) |
3 A |
| Max output current (-12V) |
0.3 A |
| Maximum input current (@110V) |
10 A |
| Maximum input current (@220V) |
5 A |
| Mean time between failures (MTBF) |
100000 h |
| Motherboard power cable length |
55cm |
| Motherboard power connector |
20+4 pin ATX |
| Noise Level |
22.5 dB |
| Number of +12V rail(s) |
1 |
| Number of fans |
1 fan(s) |
| Number of SATA power connectors |
6 |
| On/off switch |
Yes |
| Operating relative humidity (H-H) |
0 - 90% |
| Operating temperature (T-T) |
0 - 40 °C |
| Operating Voltage |
100 - 240 V |
| Package depth |
320mm |
| Package height |
210mm |
| Package weight |
3 kg |
| Package width |
133mm |
| PCI Express power cable length |
60cm |
| PCI Express power connectors (12-pin) |
1 |
| PCI Express power connectors (6+2 pin) |
3 |
| Peak power |
820 W |
| Peripheral (Molex) power cable length |
800mm |
| Peripheral (Molex) power connectors (4-pin) |
1 |
| Power Factor |
0.98 |
| Power Factor Correction (PFC) type |
Active |
| Power supply |
100 - 240V |
| Power supply unit (PSU) form factor |
ATX |
| Product colour |
Black |
| Product Type |
PC power supply unit |
| Products per shipping (inner) case |
6 pc(s) |
| PSU output power |
750W |
| Purpose |
PC |
| SATA power cable length |
500,650,800,950 mm |
| Screws included |
Yes |
| Shipping (inner) case height |
41.8cm |
| Shipping (inner) case length |
44cm |
| Shipping (inner) case net weight |
19.2 kg |
| Shipping (inner) case width |
34.5cm |
| Storage relative humidity (H-H) |
0 - 95% |
| Storage temperature (T-T) |
-20 - 70 °C |
| Sustainability certificates |
ENERGY STAR, ErP, Triman |
| Total power |
750 W |
| Type |
PC power supply unit |
| Warranty period |
10 year(s) |
| Weight |
2.6kg |
| Width |
86mm |
