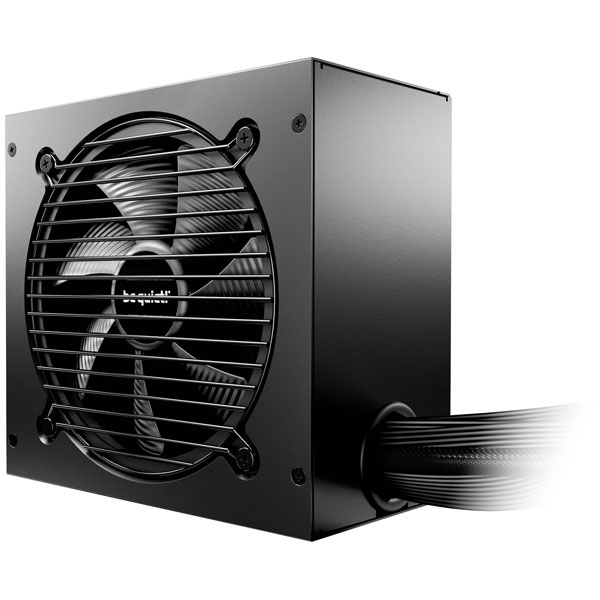

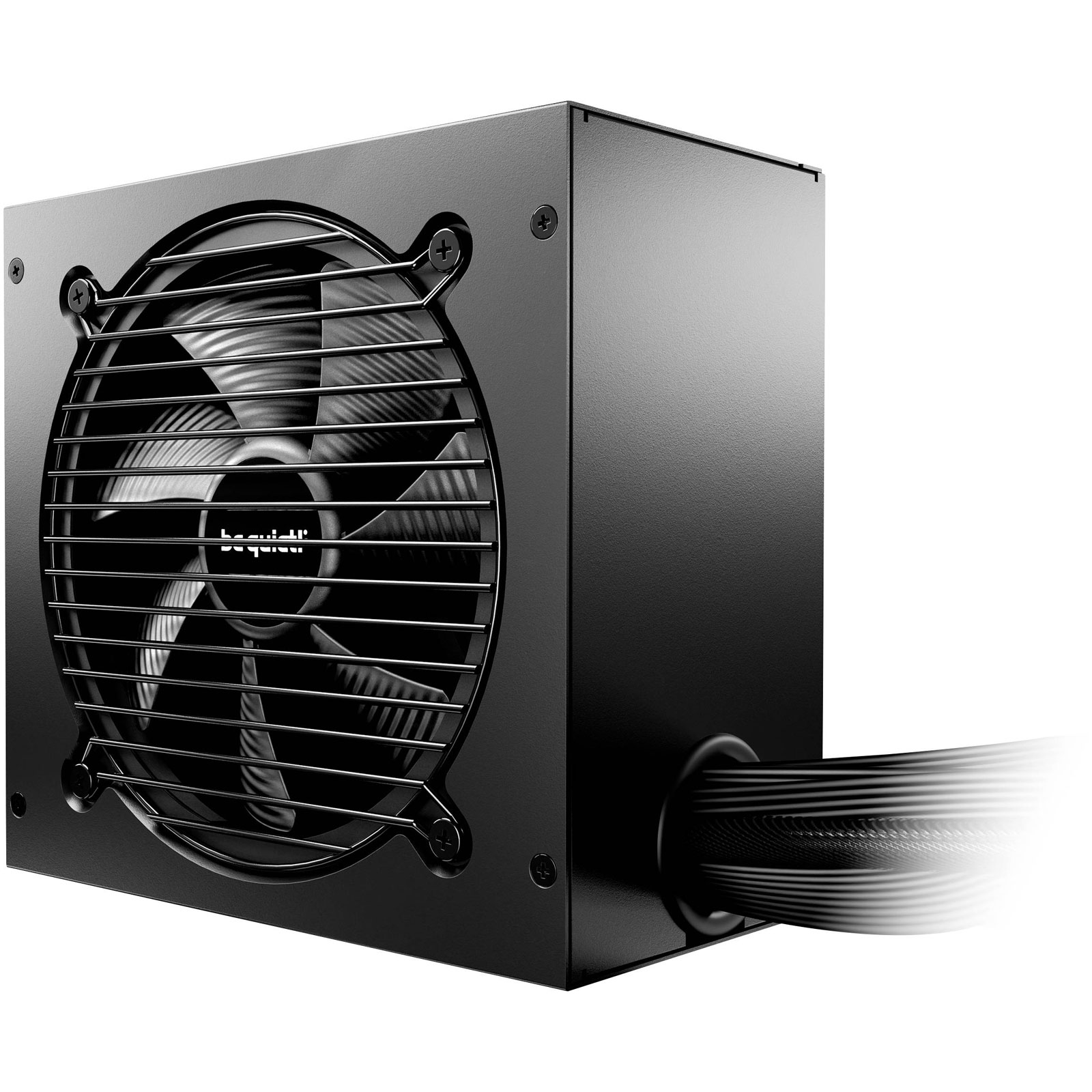

BeQuiet BP002EU PURE POWER 12 650W ATX 80 PLUS Gold efficiently delivers reliable power to personal computer systems, making it an optimal choice for both casual users and demanding applications. This power supply unit is certified to the 80 PLUS Gold standard, ensuring high energy efficiency and reduced energy costs by minimising waste heat. Engineered as a computer power supply unit, it supports modern ATX systems, providing stable power distribution and enhancing overall system performance. Commonly utilised in desktop computing environments, the PURE POWER 12 650W is well-suited for use in engineering contexts that demand dependable power management, such as CAD workstations and computational research setups. As a mains unit constructed with precision and durability, it is an integral component for maintaining system integrity under various operational conditions.
| Power Rating |
501 - 750 W |
| +5V / DC |
3A |
| -12V / DC |
0.3A |
| 3.3V DC |
20A |
| 4-pin Molex |
1 |
| 5 V DC |
20A |
| 5-pin SATA |
5 |
| 6-pin PCIe |
2 |
| 80 PLUS certification |
80 PLUS Gold |
| AC input frequency |
50/60 Hz |
| AC input voltage |
100 - 240 V |
| ATX version |
3.1 |
| Bearing technology |
Rifle |
| Cable tie(s) included |
Yes |
| Cables included |
AC |
| Cabling type |
Non-Modular |
| Colour |
Black |
| Combined power (+12V) |
650 W |
| Combined power (+3.3V) |
120 W |
| Combined power (+5V) |
120 W |
| Combined power (+5Vsb) |
15 W |
| Combined power (-12V) |
3.6 W |
| Compliance certificates |
CB, CE, Federal Communications Commission (FCC), RoHS, UKCA, WEEE, cTUVus |
| Cooling |
Active |
| Cooling type |
Active |
| CPU P4 connector (4-pin) |
1 |
| CPU power cable length |
60cm |
| CPU power connector (4+4 pin) |
Yes |
| Depth |
160mm |
| Dimensions |
(W x H x D) 86 x 150 x 160 mm |
| Efficiency |
91% |
| EPS version |
2.92 |
| Fan diameter |
12 cm |
| Height |
150mm |
| Hold time |
16.86 ms |
| Max output current (+12V1) |
54.1 A |
| Max output current (+3.3V) |
20 A |
| Max output current (+5V) |
20 A |
| Max output current (+5Vsb) |
3 A |
| Max output current (-12V) |
0.3 A |
| Maximum input current (@110V) |
10 A |
| Maximum input current (@220V) |
5 A |
| Mean time between failures (MTBF) |
100000 h |
| Motherboard power cable length |
55cm |
| Motherboard power connector |
20+4 pin ATX |
| Noise Level |
18.2 dB |
| Number of +12V rail(s) |
1 |
| Number of fans |
1 fan(s) |
| Number of SATA power connectors |
5 |
| On/off switch |
Yes |
| Operating relative humidity (H-H) |
0 - 90% |
| Operating temperature (T-T) |
0 - 40 °C |
| Operating Voltage |
100 - 240 V |
| Package depth |
320mm |
| Package height |
210mm |
| Package weight |
2.8 kg |
| Package width |
133mm |
| PCI Express power cable length |
60cm |
| PCI Express power connectors (12-pin) |
1 |
| PCI Express power connectors (6+2 pin) |
2 |
| Peak power |
720 W |
| Peripheral (Molex) power cable length |
800mm |
| Peripheral (Molex) power connectors (4-pin) |
1 |
| Power Factor |
0.98 |
| Power Factor Correction (PFC) type |
Active |
| Power supply |
100 - 240V |
| Power supply unit (PSU) form factor |
ATX |
| Product colour |
Black |
| Product Type |
PC power supply unit |
| Products per shipping (inner) case |
6 pc(s) |
| PSU output power |
650W |
| Purpose |
PC |
| SATA power cable length |
500,650,800 mm |
| Screws included |
Yes |
| Shipping (inner) case height |
41.3cm |
| Shipping (inner) case length |
42cm |
| Shipping (inner) case net weight |
18.1 kg |
| Shipping (inner) case width |
34.5cm |
| Storage relative humidity (H-H) |
0 - 95% |
| Storage temperature (T-T) |
-20 - 70 °C |
| Sustainability certificates |
ENERGY STAR, ErP, Triman |
| Total power |
650 W |
| Type |
PC power supply unit |
| Warranty period |
10 year(s) |
| Weight |
2.4kg |
| Width |
86mm |
