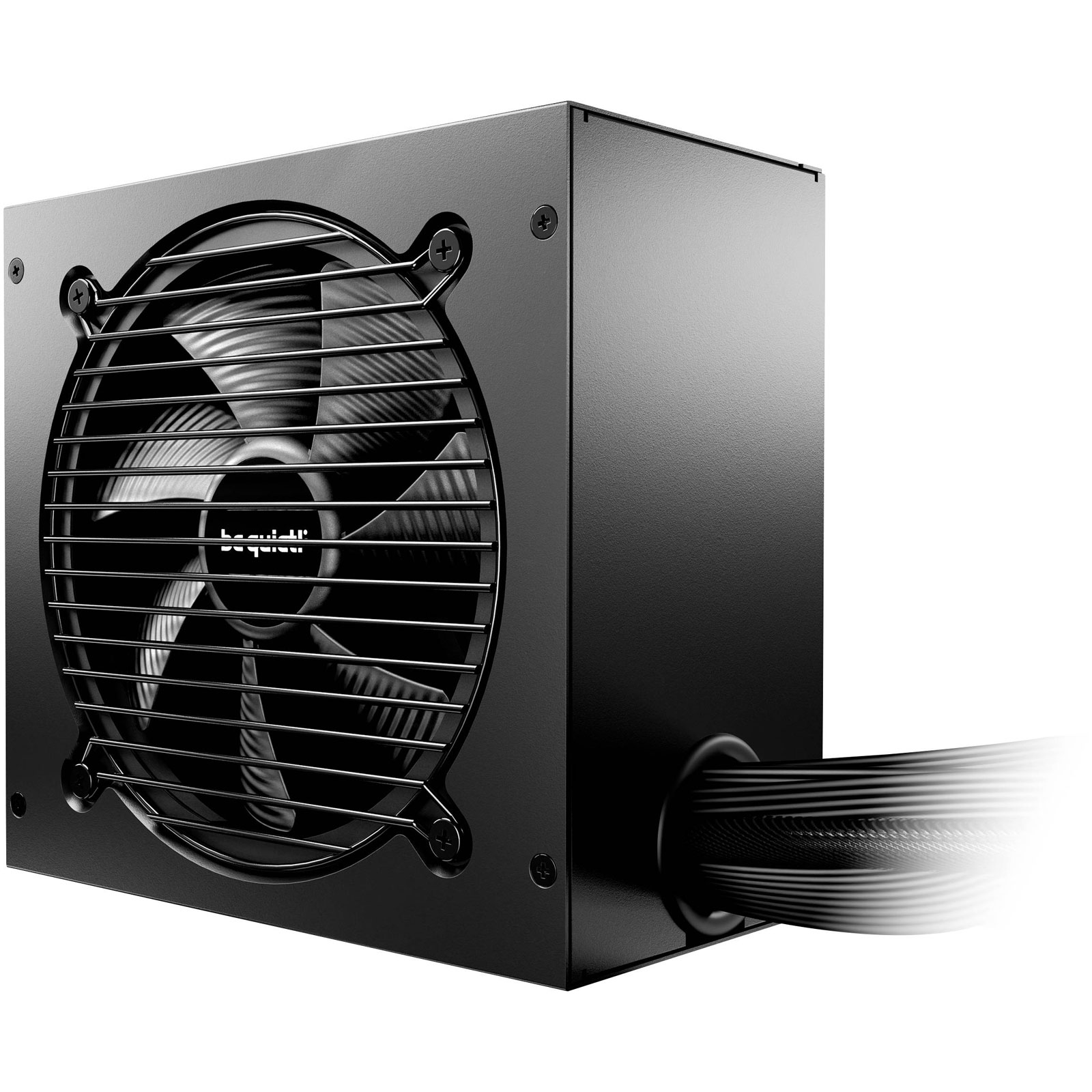

BeQuiet BP001EU PURE POWER 12 550W ATX 80 PLUS Gold is a computer power supply unit that exemplifies optimal efficiency and reliability for computing applications. This PSU delivers 550 watts of continuous power and is certified with the 80 PLUS Gold rating, ensuring high energy efficiency and reduced heat output. Its ATX form factor makes it suitable for integration within standard desktop computer builds, particularly where dependable and efficient power delivery is critical. Engineers may utilise this power supply unit in scenarios requiring stability for general computing tasks, gaming PCs, or workstation setups where energy efficiency and noise reduction are of paramount importance. This power supply is a dependable solution for professional environments requiring compliant and efficient power distribution.
| Power Rating |
501 - 750 W |
| +5V / DC |
3A |
| -12V / DC |
0.3A |
| 3.3V DC |
20A |
| 4-pin Molex |
1 |
| 5 V DC |
20A |
| 5-pin SATA |
5 |
| 6-pin PCIe |
2 |
| 80 PLUS certification |
80 PLUS Gold |
| AC input frequency |
50/60 Hz |
| AC input voltage |
100 - 240 V |
| ATX version |
3.1 |
| Bearing technology |
Rifle |
| Cable tie(s) included |
Yes |
| Cables included |
AC |
| Cabling type |
Non-Modular |
| Colour |
Black |
| Combined power (+12V) |
550 W |
| Combined power (+3.3V) |
120 W |
| Combined power (+5V) |
120 W |
| Combined power (+5Vsb) |
15 W |
| Combined power (-12V) |
3.6 W |
| Compliance certificates |
CB, CE, Federal Communications Commission (FCC), RoHS, UKCA, WEEE, cTUVus |
| Cooling |
Active |
| Cooling type |
Active |
| CPU power cable length |
60cm |
| CPU power connector (4+4 pin) |
Yes |
| Depth |
160mm |
| Dimensions |
(W x H x D) 86 x 150 x 160 mm |
| Efficiency |
91.2% |
| EPS version |
2.92 |
| Fan diameter |
12 cm |
| Height |
150mm |
| Hold time |
16.64 ms |
| Max output current (+12V1) |
45.8 A |
| Max output current (+3.3V) |
20 A |
| Max output current (+5V) |
20 A |
| Max output current (+5Vsb) |
3 A |
| Max output current (-12V) |
0.3 A |
| Maximum input current (@110V) |
10 A |
| Maximum input current (@220V) |
5 A |
| Mean time between failures (MTBF) |
100000 h |
| Motherboard power cable length |
55cm |
| Motherboard power connector |
20+4 pin ATX |
| Noise Level |
14.6 dB |
| Number of +12V rail(s) |
1 |
| Number of fans |
1 fan(s) |
| Number of SATA power connectors |
5 |
| On/off switch |
Yes |
| Operating relative humidity (H-H) |
0 - 90% |
| Operating temperature (T-T) |
0 - 40 °C |
| Operating Voltage |
100 - 240 V |
| Package depth |
320mm |
| Package height |
210mm |
| Package weight |
2.8 kg |
| Package width |
133mm |
| PCI Express power cable length |
60cm |
| PCI Express power connectors (12-pin) |
1 |
| PCI Express power connectors (6+2 pin) |
2 |
| Peak power |
600 W |
| Peripheral (Molex) power cable length |
800mm |
| Peripheral (Molex) power connectors (4-pin) |
1 |
| Power Factor |
0.98 |
| Power Factor Correction (PFC) type |
Active |
| Power supply |
100 - 240V |
| Power supply unit (PSU) form factor |
ATX |
| Product colour |
Black |
| Product Type |
PC power supply unit |
| Products per shipping (inner) case |
6 pc(s) |
| PSU output power |
550W |
| Purpose |
PC |
| SATA power cable length |
500,650,800 mm |
| Screws included |
Yes |
| Shipping (inner) case height |
41.8cm |
| Shipping (inner) case length |
44cm |
| Shipping (inner) case net weight |
17.7 kg |
| Shipping (inner) case width |
34.5cm |
| Storage relative humidity (H-H) |
0 - 95% |
| Storage temperature (T-T) |
-20 - 70 °C |
| Sustainability certificates |
ENERGY STAR, ErP, Triman |
| Total power |
550 W |
| Type |
PC power supply unit |
| Warranty period |
10 year(s) |
| Weight |
2.3kg |
| Width |
86mm |
