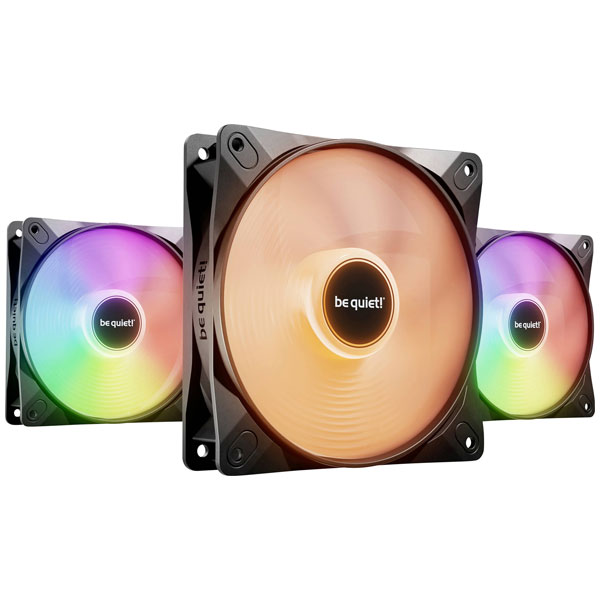

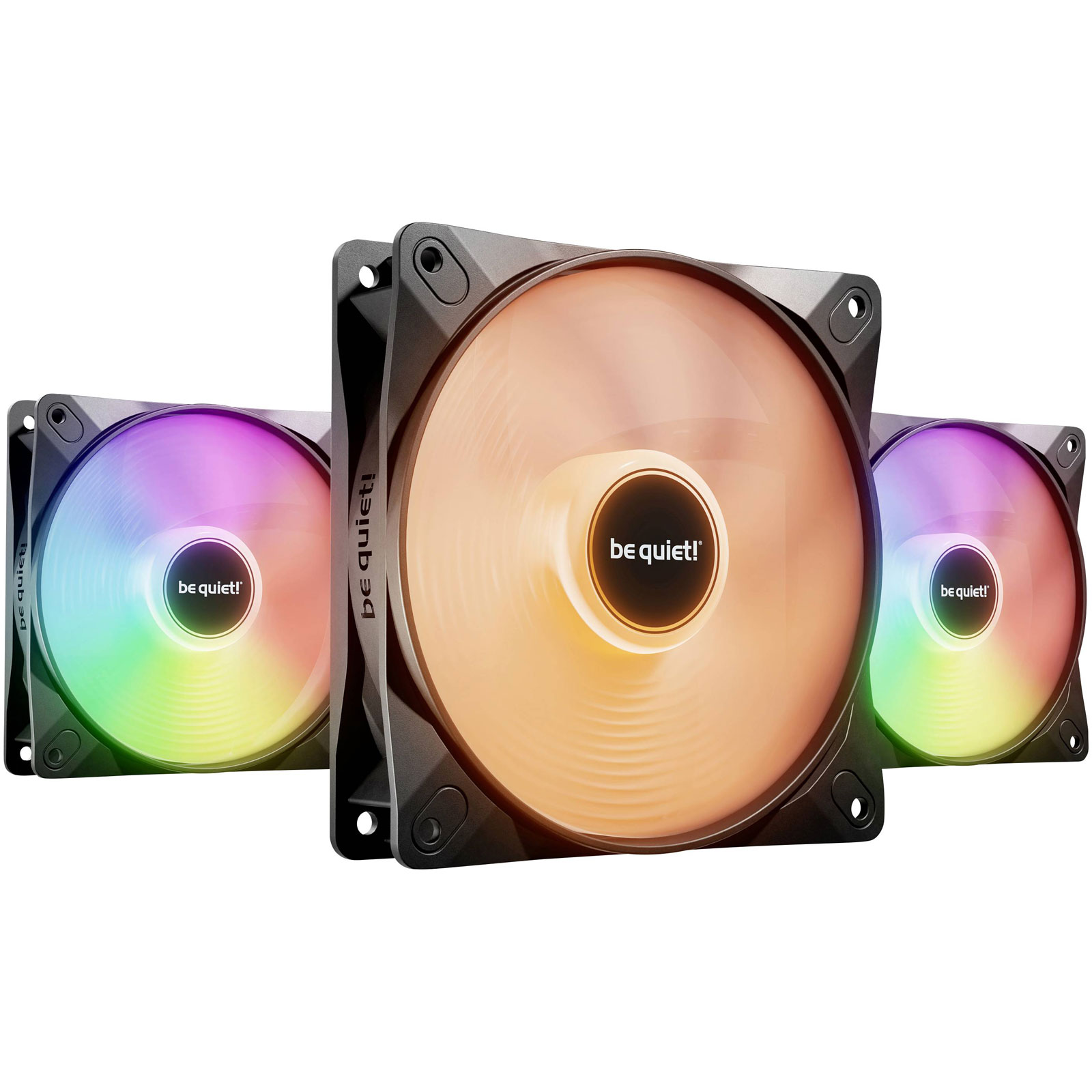

BeQuiet BL124, LIGHT WINGS LX 120mm PWM high-speed Triple-Pack, is an advanced standalone solution designed to enhance thermal management within computer systems. With dimensions of 120x120x25mm, this enclosure fan features integrated LED lighting, providing a cooling solution that maintains both aesthetic appeal and functional efficacy. Primarily used in the cooling of PC cases and processors, its design ensures optimal airflow and reduced acoustic levels under variable speed conditions controlled via PWM, making it suitable for high-performance PCs that require efficient thermal regulation. Engineered for reliability, this cooling accessory is essential for maintaining system stability and prolonging component lifespan in demanding computational environments.
| Type |
PC fan |
| Fan Size |
120mm |
| Colour |
Black |
| Air Discharge |
105.1m³/h |
| Airflow |
105.1 m³/h |
| Bearing Type |
Rifle bearing |
| Cable Length |
0.5m |
| Compliance certificates |
CE, RoHS, UKCA, WEEE |
| Connection |
4-pin PWM |
| Content |
3 |
| Depth |
25mm |
| Dimensions |
(W x H x D) 120 x 120 x 25 mm |
| Fan connector |
4-pin |
| Fan current |
0.15 A |
| Fan diameter |
12 cm |
| Fan dimensions (W x D x H) |
120 x 120 x 25 mm |
| Fan power consumption |
5.4 W |
| Fan voltage |
12 V |
| Fan weight |
135 g |
| Height |
120mm |
| Illumination Colour |
Multi |
| Illumination LED |
Yes |
| LED connector type |
3-pin |
| Maximum air pressure |
2.51 mmH2O |
| Maximum Airflow |
61.8 cfm |
| Maximum Current |
0.45 A |
| Mean time between failures (MTBF) |
60000 h |
| Noise emission |
30.1 dB - 40 dB |
| Noise emission (max.) |
30.9dB |
| Noise level (high speed) |
30.9 dB |
| Number of fan blades |
9 |
| Number of fans |
3 fan(s) |
| Number of LEDs |
16 |
| Number of screws |
12 |
| Package depth |
164mm |
| Package height |
80mm |
| Package type |
Box |
| Package weight |
480 g |
| Package width |
122mm |
| Product colour |
Black |
| Product Type |
PC fan |
| Products per shipping (inner) case |
20 pc(s) |
| Pulse-width modulation (PWM) support |
Yes |
| Quantity per pack |
3 pc(s) |
| Rated Voltage |
12 V |
| Rotational speed (max) |
2100 RPM |
| Rotational speed (max.) |
2100U/min |
| Screws included |
Yes |
| Shipping (inner) case gross weight |
10.3 kg |
| Shipping (inner) case height |
32cm |
| Shipping (inner) case length |
42.8cm |
| Shipping (inner) case width |
26.9cm |
| Suitable location |
Computer case |
| Type of bearing |
Rifle bearing |
| Voltage |
5 - 13.2 V |
| Warranty period |
3 year(s) |
| Width |
120mm |
