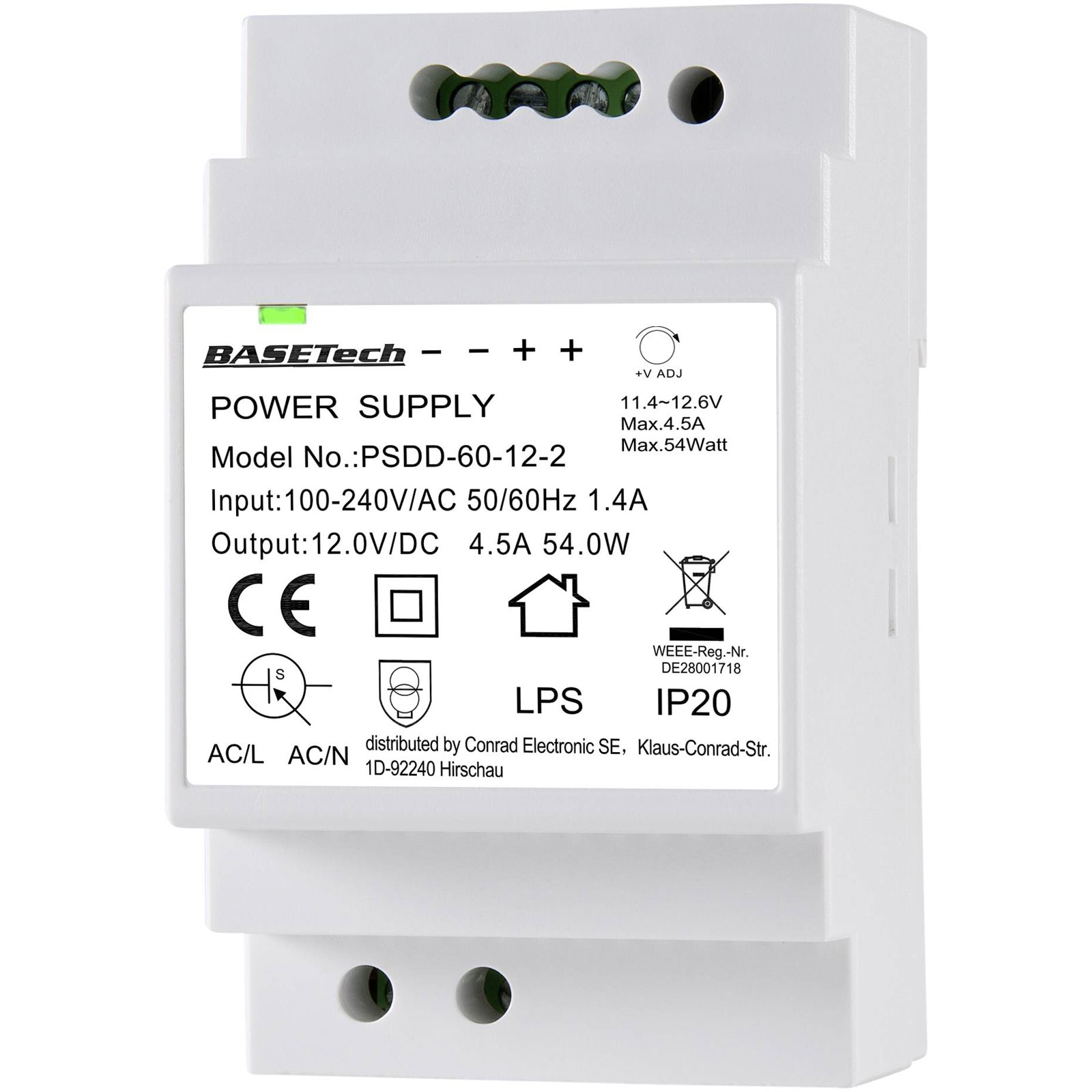

Basetech BT-2250320 PSDD-60-12-2 DIN Rail PSU 12V 4.5A 54W 2 Outputs

The Basetech PSDD-60-12-2 is a rail mounted PSU (DIN) providing 12 V at 4.5 A with a total output of 54 W across two outputs. Robust and efficient, this industrial power supply unit is ideal for integrating into DIN rail systems. It is perfect for use in various industrial and automation applications where reliable power is essential.

Type	Rail mounted PSU (DIN)
Nominal value output current 1	4.5A
Number of Outputs	2
Power Rating	54W
Depth	58mm
Dimensions (L x W x H)	58 x 52 x 90mm
Efficiency	88%
Height	90mm
Input Voltage	100-240 V AC 50/60 Hz 1.5 A
Max. output current 1	4.5A
Maximum input voltage [AC]	240V
Maximum Operating Temperature	50°C
Maximum Temperature	80°C
Min. operating temperature (derating)	-20°C
Min. temperature	-40°C
Minimum Input Voltage [AC]	100V
Misc Attribute	PSDD-60-12-2
Nominal value output voltage 1	12V
Plastic free packaging	Plastic-free packaging
Weight	190g
Width	52mm
