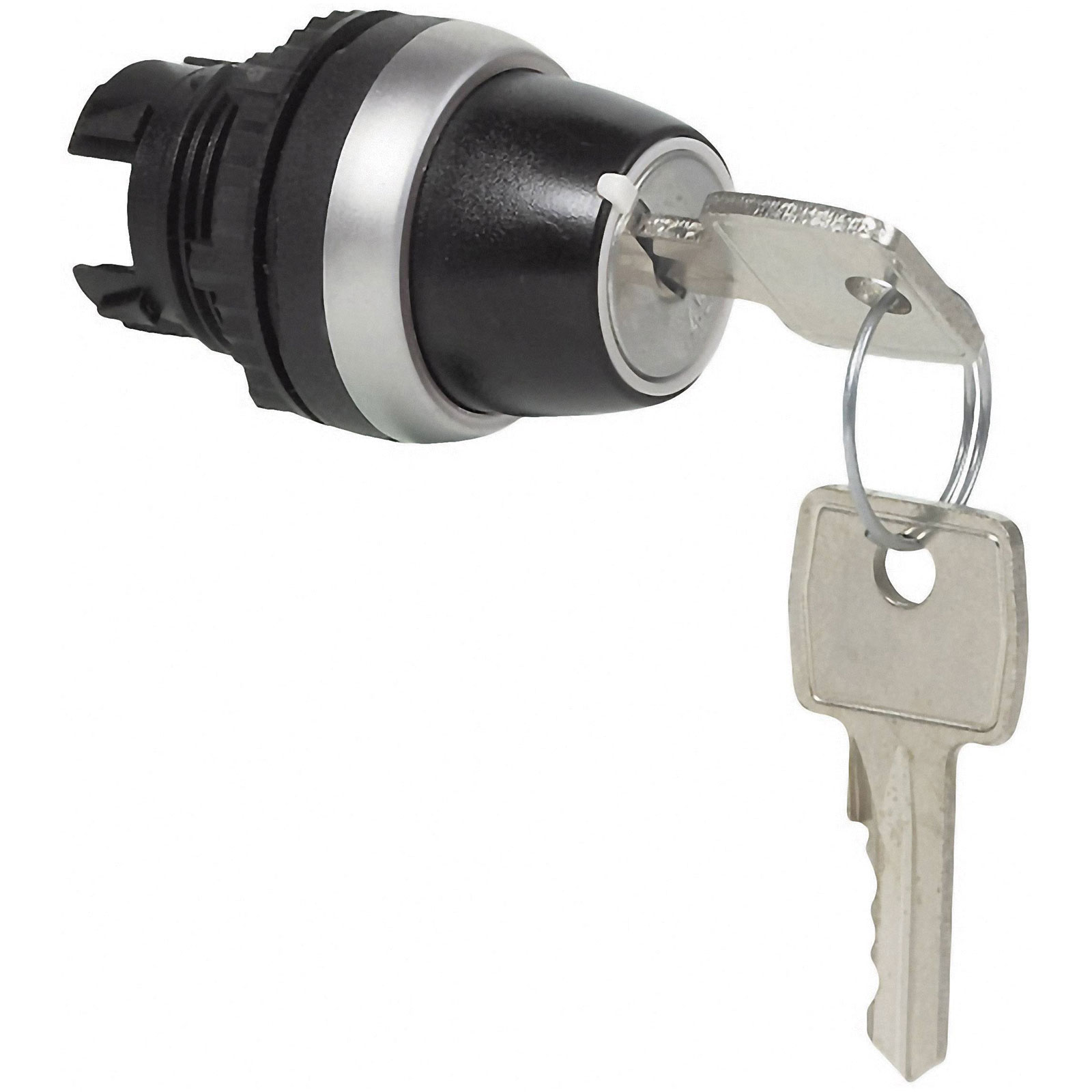

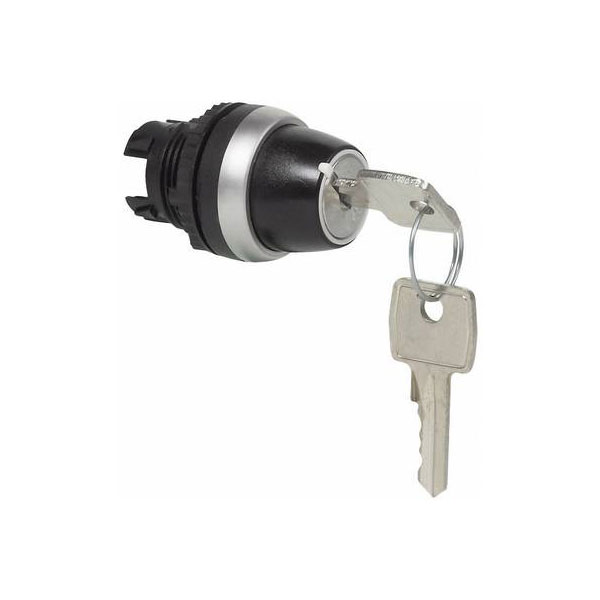

BACO 223952 L21LD00 Key Switch Chrome-Plated Black PVC Front Ring

The BACO 223952 L21LD00 is a chrome-plated key switch with a black PVC front ring, designed for durable and precise control. Manufactured by BACO, this switch features a 45° rotational movement, making it suitable for secure, controlled operation in industrial applications. Commonly used in machinery control panels, it ensures reliable access control.

Type	Key switch
Switch Function	Momentary
Voltage Rating	N/A
Current Rating	N/A
(Ø)	29.9mm
Colour	Black, Chrome
Connection	External contact
Dim	(Ø x H) 29.9 mm x 26.2 mm
Height	26.2mm
IP Rating	IP69K
Key removal position	Off/-
Lighting Type	None
Misc Attribute	L21LD00
Print motif	None
Recess Diameter	22.3mm
Recess diameter (details)	22.3mm
Switching angle	1 x 45 °
