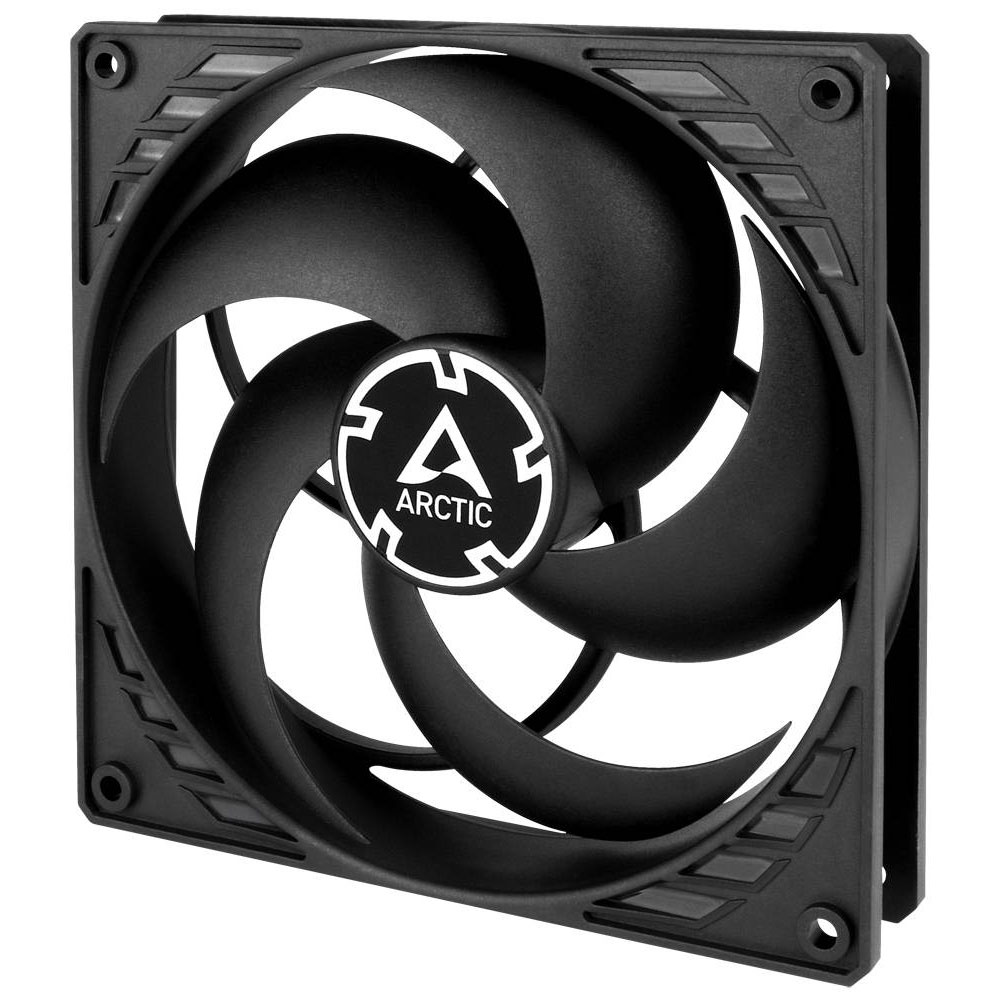

Arctic ACFAN00125A P14 PWM PST PC fan Black 140x27x140 mm

Arctic ACFAN00125A, P14 PWM PST PC fan, is a black enclosure fan measuring 140 x 27 x 140 mm. This computer fan is designed to provide efficient cooling performance for PC casings by optimising airflow and reducing thermal buildup within computer systems. The P14 PWM PST incorporates pulse-width modulation (PWM) functionality and PST (PWM Sharing Technology), allowing precise speed control and synchronous operation of multiple fans for improved power efficiency and reduced noise levels. This fan is ideally suited for applications requiring reliable ventilation solutions in desktops, workstations, and other electronic enclosures where maintaining consistent thermal conditions is critical for optimal system performance.

Type	PC fan
Fan Size	140mm
Colour	Black
Air Discharge	123.76m³/h
Airflow	123.76 m³/h
Bearing Type	Fluid Dynamic Bearing (FDB)
Cable Length	0.4 m
Compatible processor series	Not supported
Connection	4-pin PWM
Content	1
Country of origin	China
Depth	140mm
Design Height	27mm
Dimensions	(W x H x D) 140 x 27 x 140 mm
Fan connector	4-pin + 4-pin
Fan diameter	14 cm
Harmonized System (HS) code	84733080
Height	27mm
Maximum air pressure	2.4 mmH2O
Maximum Airflow	72.8 cfm
Noise emission	20.1 dB - 30 dB
Noise emission (max.)	24.5dB
Noise Level	0.3 sone
Noise level (high speed)	24.5 dB
Number of fan blades	5
Number of fans	1 fan(s)
Number of screws	4
Package depth	143mm
Package height	29mm
Package type	Box
Package weight	234 g
Package width	143mm
Power consumption (typical)	1.44 W
Product colour	Black
Product Type	PC fan
Pulse-width modulation (PWM) support	Yes
Rated current	0.12 A
Rotational speed (max)	1700 RPM
Rotational speed (max.)	1700U/min
Rotational speed (min)	200 RPM
Rotational Speed (min.)	200U/min
Screws included	Yes
Starting voltage	3.9 V
Suitable location	Computer case
Supported processor sockets	Not supported
Type of bearing	Fluid dynamic bearing
Voltage	12 V
Weight	194g
Width	140mm
