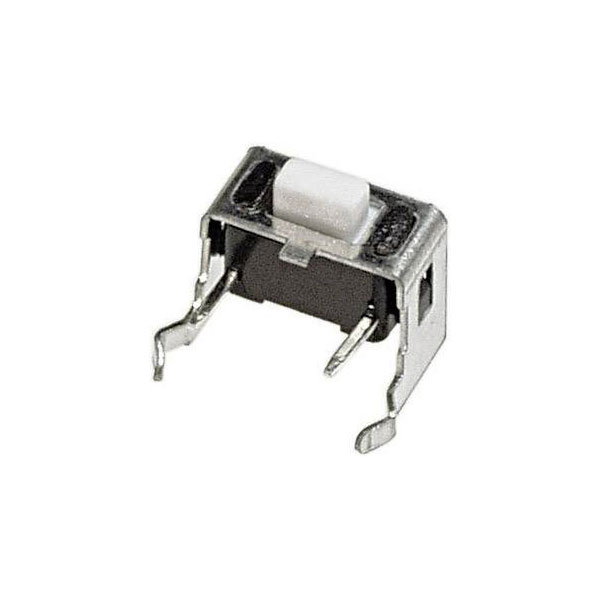

APEM PHAP3363 Pushbutton Switch 12V DC 0.05A Off/(On) Momentary

The APEM PHAP3363 pushbutton switch is manufactured by APEM and operates at 12 V DC with a current rating of 0.05 A. It features a 1 x Off/(On) momentary action, making it suitable for momentary activation applications. Typical uses include control panels and electronic devices that require a temporary switch operation.

Type	Pushbutton
Contact Configuration	SPST off / (on)
Switch Function	Off/(On)
Current Rating (A)	0.05A
Orientation	Horizontal/ Side Actuator
Outline Dimensions	6 x 3.5 mm
Illumination	None
Operating Force	180gf
Board thickness (max.)	5mm
Connection	Print
Contact Resistance	voltage:100mΩ
Contact Type	1 maker
Dielectric Strength	250 V/AC/60 (4)
Electrical Life	30000 cycles
Functions	momentary
Insulation Resistance	voltage:100MΩ
Lighting Type	None
Maximum Operating Temperature	+70°C
Maximum Temperature	+70°C
Min. temperature	-20°C
Misc Attribute 1	Pushbutton for horizontal through-hole mounting
Switch position	1 x Off/(On)
Switch/button features	Protruding
Switching Voltage	12V DC
Temperature Range	-20 - +70 ºC°C
