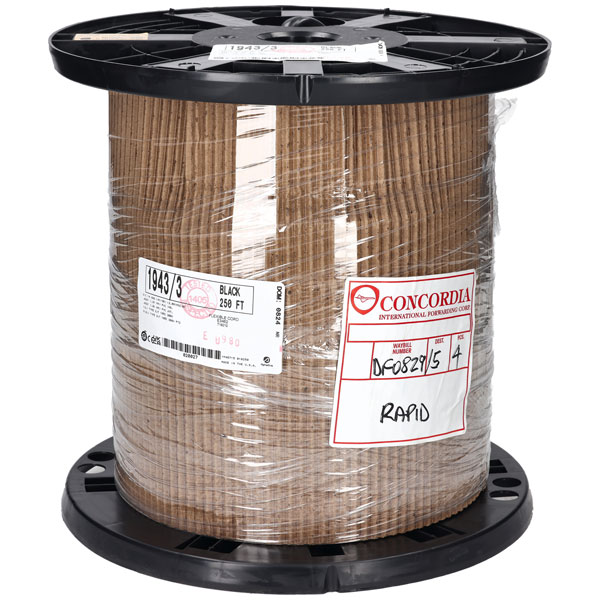

Alpha Wire 1943/3 BK003 3 Core 14 AWG PVC Unscreened Black Cables 250FT - The 1943/3 BK003 is a 3-core sunlight-resistant Unshielded Cable with bare copper conductor, PVC insulation and a black PVC jacket. For applications such as consumer electronics, Industrial, communications & networking, medical, test & measurement.
- Cable Shielding: Unscreened
- Wire Gauge: 14AWG
- Reel Length (Imperial): 250ft
- Jacket Colour: Black
- Conductor Material: Copper
- External Diameter: 9.35mm
- Product Range: 1943
- No. of Cores: 3Core
- Conductor Area CSA: 2.08mm²
- Reel Length (Metric): 76.2m
- No. of Max Strands x Strand Size: 41 x 30AWG
- Jacket Material: PVC
- Voltage Rating: 300V
As strategic distributors of Alpha Wire's industry-leading range of industrial, communications and control cables, wire and tubing solutions, Rapid is delighted to announce a new sourcing service for customers.
We can offer access to the complete Alpha Wire catalogue – so even if we do not stock the product or line you need, we can order and despatch it for you. All lines are available on short lead times.
Our quotes team can talk to you about discounts on volume, schedule and call off orders. Please complete the product/quote form and we will respond as soon as possible.
| Colour |
Black |
| Number of Cores |
3 |
| AWG |
14 AWG |
| Length |
76m |
| Insulation Material |
Polyvinyl Chloride (PVC) |
| Conductor Cross Section |
2.08mm² |
| Cable Diameter |
9.35mm |
| Cable shielding |
Unscreened |
| Conductor Material |
Copper |
| Conductor Stranding |
41 x 30 |
| Cores |
3 |
| Diameter (in) |
0.376 |
| Height |
10In |
| Material |
PVC |
| Min. temperature |
-15°C |
| No. of cores |
3Core |
| Operating Temperature |
-30 to 105° |
| Shielding |
UNSHIELDED |
| Stranding |
41/30 |
| Voltage |
300 |
| Voltage Rating |
300V |
| Weight |
30.5Kg |
| Width |
12In |
