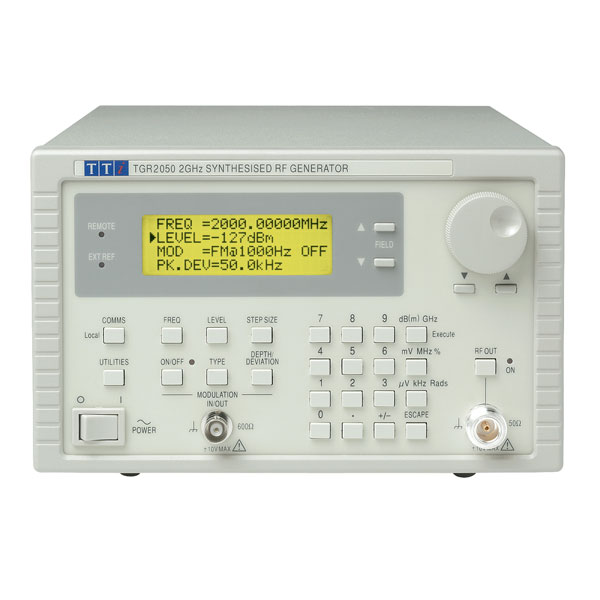

Aim-TTi TGR2050 150KHz to 2000MHz Rf Signal Generator

The TGR2050 is a low cost, synthesised RF signal generator with a 150kHz to 2GHz output that incorporates the essential features required for most development, test and service work. It can be operated using either numeric or rotary controls or can be remotely controlled via either an RS-232 or GPIB interface.

• Synthesised RF generator
• 150kHz to 2GHz frequency range
• 1ppm (5 to 30°C), 2ppm (5 to 40°C) accuracy
• 2 to 5Vpp amplitude
• Sine output waveforms
• 20 character x 4 row backlit alphanumeric LCD display
• RS232 (built-in) / GPIB interface (optional)
• 100 / 115 / 230V power source
• 5°C to 40°C temperature range
• 10Hz stability
• +/-1ppm frequency stability
• Locking to external frequency standard
• -127dBm to +7dBm amplitude
• 0.1dB steps
• AM, FM and phase modulation, internal or external
• Keyboard and rotary encoder control
• Full remote control through RS232 and GPIB
• 330mm length, 212mm width, 130mm height
• 4.6kg weight
• Aim-TTi type TGR2050
