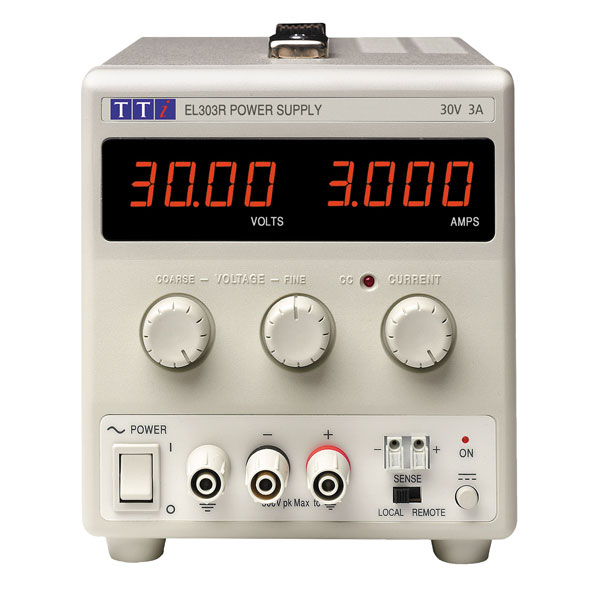

This single output PSU from the Aim-TTi EL series has been designed to meet the need for a compact power supply that provides good performance at a low price.
- Power rating 90W
- Output current 3A
- Voltage 0 to 30V
- Compact design takes up minimal bench space
- Linear regulation
- Quiet operation
- Excellent line and load regulation
- Low noise
- Good transient response
- Constant voltage and constant current modes with automatic crossover
- Coarse and fine voltage control
- Logarithmic current control enabling low currents to be accurately set
- Seperate digital voltmeter and ammeter for each main output
- Current limit settings are displayed when output switch is off, enabling verification of settings
- Bright LED display with 14mm high characters and an update rate of four per second
- All outputs short circuit proof and protected against external voltages and reverse currents
- Complies with EN61010-1 and EN61326
| Number of Outputs |
1 |
| Power Rating |
90W |
| Temperature Range |
+5 to +40°C |
| Dimensions |
(L x W x H) 195 x 140 x 160mm |
| Output Connectors |
4mm binding post terminals |
| Output Current Max |
3A |
| Output Current Min |
N/A |
| Output Voltage Max |
30V |
| Output Voltage Min |
0V |
| Programmable? |
No |
| Supply Voltage Range (AC) |
115 to 230V |
