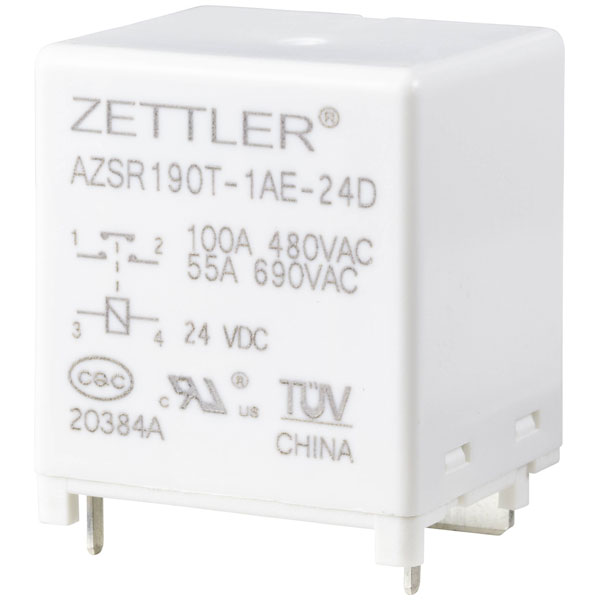

Zettler Electronics AZSR190T-1AE-24D Power Relay 24V DC 100A 1PC

Zettler Electronics
Order Code:

08-3727

Brand: Zettler Electronics MPN: AZSR190T-1AE-24D EAN-13: 4064161158044
Qty Unit Price (Ex VAT)
1+ £15.71
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
81 in stock, despatched in 4 working days

Zettler Electronics manufactures the AZSR190T-1AE-24D power relay which operates at 24 V DC and is rated for 100 A. This mini relay is suitable for PCB mounting and is commonly used in applications requiring high current switching. It is ideal for controlling power in automotive and industrial systems.
Coil Voltage 24V DC
Contact Configuration 1NO
Switching Current 100AA
Coil Resistance 300O
Colour White
Connection Pins
Contact Material AgSnO2
Dimensions (L x W x H) 38 x 33 x 43 mm
Height 43mm
Insulation Voltage 800V AC
Length 38mm
Max. pick-up Voltage 26.4V DC
Max. switching capacity 48000VA
Max. temperature +85°C
Min. pick-up Voltage 9.6V DC
Minimum Temperature -40°C
Mounting Type PCB
Switching Voltage Max 800V AC
Type Power relay
Width 33mm
