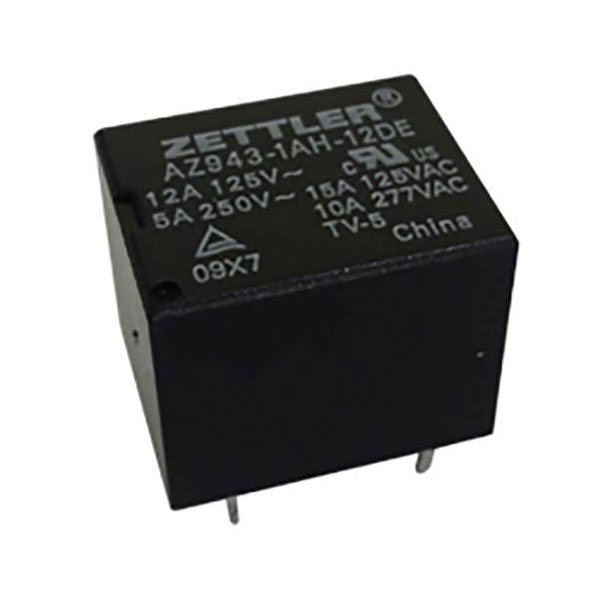

Zettler Electronics AZ943-1CH-24DEFGW PCB Relay 24V DC 15A Change-Over 1pc

Zettler Electronics
Order Code:

08-3703

Brand: Zettler Electronics MPN: AZ943-1CH-24DEFGW EAN-13: 2050006578094
Qty Unit Price (Ex VAT)
5+ £1.18
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
8 in stock, despatched in 4 working days

Zettler Electronics manufactures the AZ943-1CH-24DEFGW PCB relay, which operates at 24 V DC and supports a current of 15 A with 1 change-over contact. This mini relay is designed for printed circuit board mounting, making it ideal for applications in consumer electronics and automation systems. Its compact size and reliable performance make it suitable for various switching tasks in both industrial and residential environments.
Type PCB relay
Coil Voltage 24V DC
Switching Current 15A
Length 19mm
Width 15.3mm
Height 15.7mm
Connection Solder pins
Contact Material AgSnO2
Contact Type 1 change-over
Control Mode monostable, 1 coil
Dim (L x W x H) 19 x 15.3 x 15.7 mm
Durability 1 x 10E6
Fall Time 5ms
Max. switching capacity 300W
Max. temperature +85°C
Min. temperature -40°C
Resistance (coil) 1600Ω
Response Time 10ms
