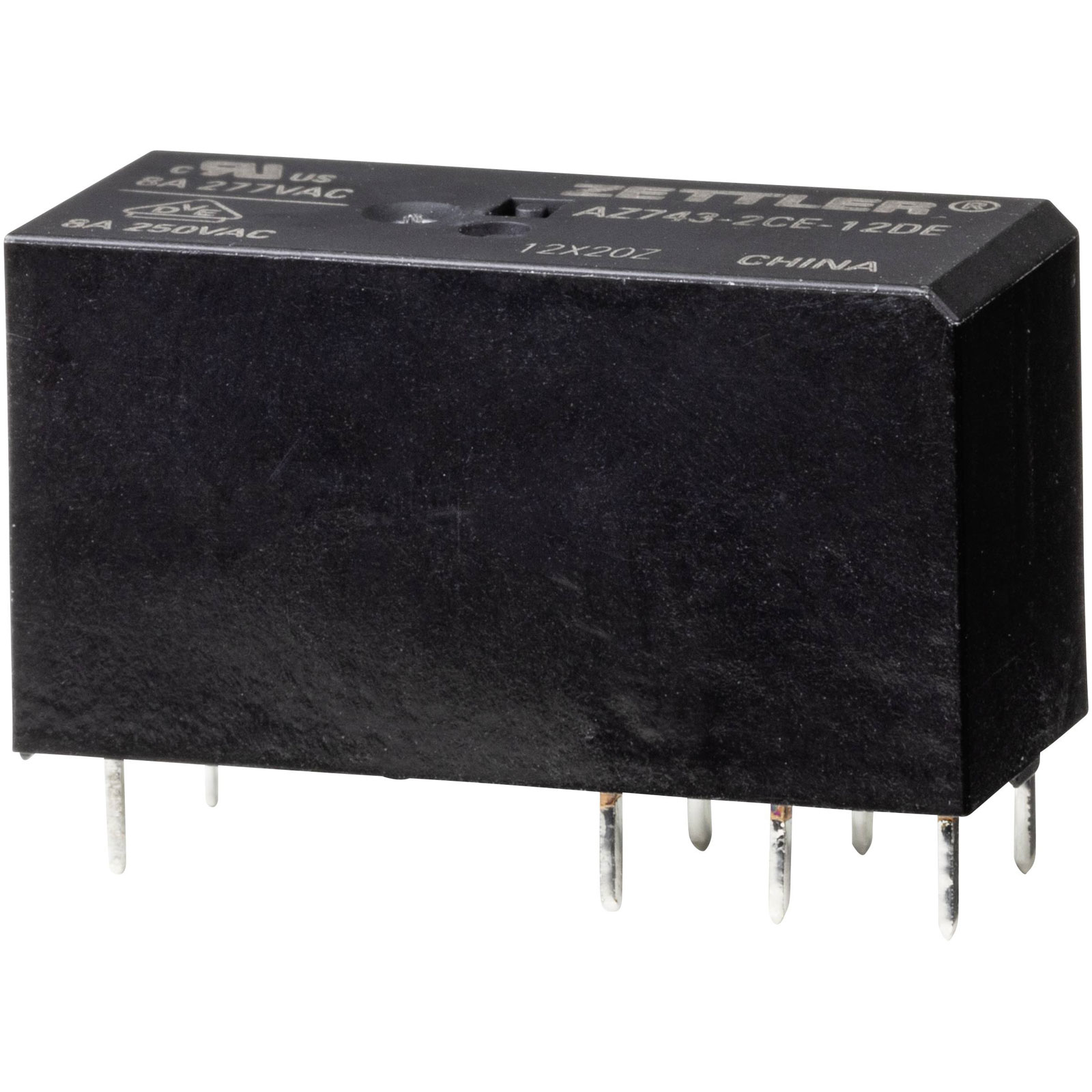

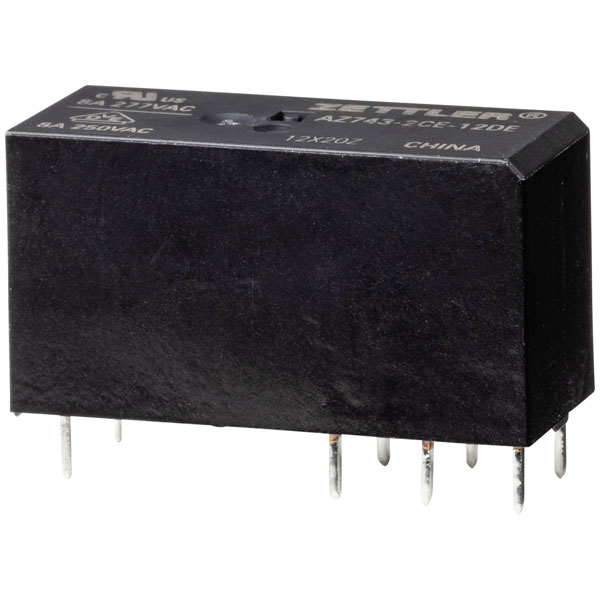

Zettler Electronics AZ743-2CE-12DE Power Relay 12V DC 8A 1pc

Zettler Electronics
Order Code:

08-3568

Brand: Zettler Electronics MPN: AZ743-2CE-12DE EAN-13: 4064161162836
Qty Unit Price (Ex VAT)
2+ £3.17
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
100 in stock, despatched in 4 working days

The Zettler Electronics AZ743-2CE-12DE is a power relay designed for 12 V DC operation with an 8 A current rating. As a PCB mount relay, it is suitable for printed circuit board applications requiring reliable switching. Typical uses include automotive, industrial, and consumer electronics where compact and efficient electrical control is needed.
Coil Voltage 12V DC
Switching Current 8A
Coil Resistance 360O
Connection Pins
Contact Material AgSnO
Control Mode monostable, 1 coil
Dimensions (L x W x H) 29.5 x 13.2 x 16.2 mm
Height 16.2mm
Insulation Voltage 500V
Length 29.5mm
Max. pick-up Voltage 24.7V DC
Max. temperature 100°C
Min. pick-up Voltage 8.4V DC
Minimum Temperature -40°C
Mounting Type PCB
Switching Voltage Max 250V AC
Type Power relay
Width 13.2mm
