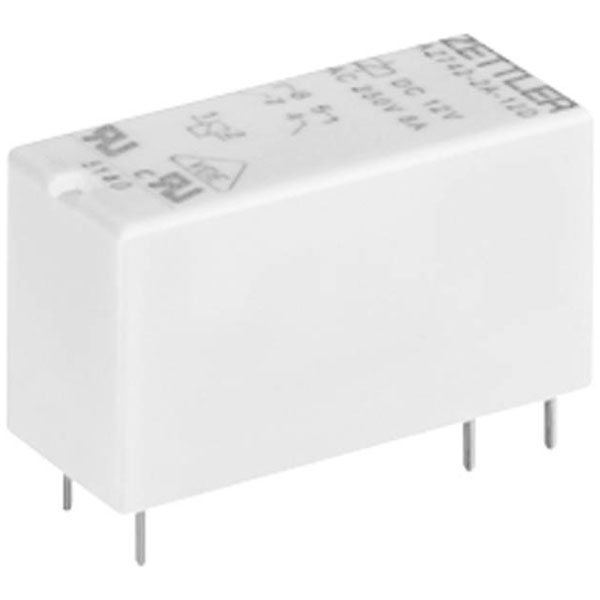

Zettler Electronics AZ742-2CG-24DE PCB Relay 24V DC 10A 2 Change-Overs 1pc

The Zettler Electronics AZ742-2CG-24DE is a PCB relay with a 24 V DC coil and can handle two change-overs, suitable for intricate circuit designs. Its compact size makes it ideal for printed circuit boards in consumer electronics and automotive applications. This miniature relay ensures reliability and efficiency in various electronic and control systems.

Coil Voltage	24V DC
Contact Configuration	2CO (DPDT)
Switching Current	10A
Coil Resistance	1440Ω
Contact Material	AgNi+Au
Control Mode	monostable, 1 coil
Dimensions	(L x W x H) 29.00 x 12.70 x 15.70 mm
Durability	3 x 10E7
Height	15.70mm
Length	29.0mm
Max. pick-up Voltage	61.2V DC
Max. switching capacity	240W
Maximum Temperature	+85°C
Min. pick-up Voltage	16.8V DC
Min. temperature	-40°C
Minimum Operating Temperature	-40°C
Mounting Type	PCB
Response Time	7ms
Switching Voltage Max	300V DC
Type	PCB relay
Width	12.7mm
